Dripline

Features

Simple
Rain Bird’s patent-pending 4.3 psi check valve technology keeps the dripline charged with water at all times, increasing uniformity of watering, and conserves water by eliminating the need to recharge the line at the beginning of each watering cycle
XFS-CV Sub-Surface Dripline emitters are protected from root intrusion by Rain Bird’s patent-pending Copper Shield™ Technology resulting in a system that does not require maintenance or replacement of chemicals to prevent root intrusion
Rain Bird’s low-profile emitter design reduces in-line pressure loss, allowing longer lateral runs, simplifying design and reducing installation time
Variety of standard emitter flow rates, emitter spacing and coil lengths provide design flexibility for sub-surface and on-surface areas with or without elevation changes
Through the use of a proprietary tubing material, the XFS-CV Dripline with heavy-duty check valve is the most flexible dripline tubing in the industry, making it the easiest dripline to design with and install
Made with Recycled Content
All Rain Bird XF Dripline (XFD, XFS, XFCV, XFS-CV) qualify for LEED credit 4.2 because they contain at least 20% Polyethylene post consumer recycled material by cost. These come in an assortment of coil sizes, flow rates and emitter spacing
Reliable
The pressure-compensating emitter design provides a consistent flow over the entire lateral length ensuring higher uniformity for increased reliability in the pressure range of 20 to 60 psi
Durable
Dual-layered tubing (copper over black) provides unmatched resistance to chemicals, algae growth and UV damage
Grit Tolerant
Rain Bird’s proprietary emitter design resists clogging by use of an extra wide flow path combined with a self-flushing action

Specifications

Operating Range
Opening Pressure: 14.5 psi
Pressure: 20 to 60 psi (1.38 to 4.14 bar)
Flow rates: 0.4, 0.6 and 0.9 gph (1.6, 2.3 and 3.5 l/hr)
Temperature:
-Water: Up to 100°F (37.8° C)
-Ambient: Up to 125°F (51.7° C)
Required Filtration: 120 mesh
Specifications
12" & 18" (30.5 cm, 45.7 cm) spacing
Available in 100', 250' and 500' (30.5 m, 76.2 m and 152.4 m) coils
Coil Colors: Copper, purple, purple stripe
Use with XF Dripline Insert Fittings

Dimensions

OD: 0.634" (16mm)
ID: 0.536" (13.6mm);
Thickness: 0.049" (1.2mm)

Model Listing

XFS-CV: Coil Color - Copper

  • XFS-CV-04-12-500: 0.4 gph(1.6l/h), 12”(30.5cm) spacing, 500’(152.4m)
  • XFS-CV-04-18-500: 0.4 gph(1.6l/h), 18”(45.7cm) spacing, 500’(152.4m)
  • XFS-CV-06-12-100: 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 100'(30.5m)
  • XFS-CV-06-12-250: 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 250'(76.2m)
  • XFS-CV-06-12-500: 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFS-CV-06-18-100: 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 100'(30.5m)
  • XFS-CV-06-18-250: 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 250'(76.2m)
  • XFS-CV-06-18-500: 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFS-CV-09-12-100: 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 100'(30.5m)
  • XFS-CV-09-12-250: 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 250'(76.2m)
  • XFS-CV-09-12-500: 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFS-CV-09-18-100: 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 100'(30.5m)
  • XFS-CV-09-18-250: 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 250'(76.2m)
  • XFS-CV-09-18-500: 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 500'(152.4m)

    • XFS-CV: Coil Color - Purple

  • XFS-CVP-04-12-500: 0.4 gph(1.6l/h), 12”(30.5cm) spacing, 500’(152.4m)
  • XFS-CVP-04-18-500: 0.4 gph(1.6l/h), 18”(45.7cm) spacing, 500’(152.4m)
  • XFS-CVP-6-12-500: 0.6 gph(2.3I/h) , spacing 12"(30.5cm), 500'(152.4m)
  • XFS-CVP-6-18-500: 0.6 gph(2.3I/h), spacing 18"(45.7cm), 500'(152.4m)
  • XFS-CVP-9-12-500: 0.9 gph(3.5I/h), spacing 12"(30.5cm), 500'(152.4m)
  • XFS-CVP-9-18-500: 0.9 gph(3.5I/h), spacing 18"(45.7cm), 500'(152.4m)

    • XFS-CV: Coil Color - Purple Stripe

  • XFS-CVPS-04-12-500: 0.4 gph(1.6l/h), 12”(30.5cm) spacing, 500’(152.4m)
  • XFS-CVPS-04-18-500: 0.4 gph(1.6l/h), 18”(45.7cm) spacing, 500’(152.4m)
  • XFS-CVPS-6-12-500: 0.6 gph(2.3I/h) , spacing 12"(30.5cm), 500'(152.4m)
  • XFS-CVPS-6-18-500: 0.6 gph(2.3I/h), spacing 18"(45.7cm), 500'(152.4m)
  • XFS-CVPS-9-12-500: 0.9 gph(3.5I/h), spacing 12"(30.5cm), 500'(152.4m)
  • XFS-CVPS-9-18-500: 0.9 gph(3.5I/h), spacing 18"(45.7cm), 500'(152.4m)

    • Features

    The QF Dripline Header elbows rotate 360º and incorporate a protective ring — preventing damage and ensuring a proper seal
    The ring also provides leverage to make attaching the dripline easier
    The rotating barb manages trenching misalignment. Move left or right to accommodate the dripline – no need to re-trench
    Elbows utilize the same design as Rain Bird’s popular XFF Fitting requiring 50% less insertion force, and are compatible with the XFF Fittings Tool

    Specifications

    QF Header - 3/4"
    OD: 0.940" (23.9mm)
    ID: 0.820" (20.8mm)
    Wall Thickness: 0.060" (1.5mm)
    QF Header - 1"
    OD: 1.200" (30.5mm)
    ID: 1.060" (26.9mm)
    Wall Thickness: 0.070" (1.8mm)

    Model Listing

  • XQF7512100: XQF 3/4”(19mm) Dripline Header 12”(30.5cm) Spacing, 100’(30.5m) Coil
  • XQF7518100: XQF 3/4”(19mm) Dripline Header 18”(45.7cm) Spacing, 100’(30.5m) Coil
  • XQF1012100: XQF 1”(25.4mm) Dripline Header 12”(30.5cm) Spacing 100’(30.5m) Coil
  • XQF1018100: XQF 1”(25.4mm) Dripline Header 18”(45.7cm) Spacing 100’(30.5m) Coil
  • XQF101210P: XQF 1”(25.4mm) Dripline Header 12”(30.5cm) Spacing 100’(30.5m) Coil Purple
  • XQF101810P: XQF 1”(25.4mm) Dripline Header 18”(45.7cm) Spacing 100’(30.5m) Coil Purple

    • Features

    Simple
    Rain Bird’s low-profile emitter design reduces in-line pressure loss, allowing longer lateral runs, simplifying design and reducing installation time
    Variety of emitter flow rates, emitter spacing and coil lengths provide design flexibility for either sub-surface turf or sub-surface shrub and groundcover applications
    Reliable
    XFS Sub-Surface Dripline emitters are protected from root intrusion by Rain Bird’s patent-pending Copper Shield™ Technology resulting in a system that does not require maintenance or replacement of chemicals to prevent root intrusion
    The pressure-compensating emitter design provides a consistent flow over the entire lateral length ensuring higher uniformity for increased reliability in the pressure range of 8.5 to 60 psi
    Durable
    Dual-layered tubing (copper over black) provides unmatched resistance to chemicals, algae growth and UV damage
    Grit Tolerant: Rain Bird’s proprietary emitter design resists clogging by use of an extra-wide flow path combined with a self-flushing action

    Specifications

    Operating Range
    Pressure: 8.5 to 60 psi (0.58 to 4.14 bar)
    Flow rates: 0.4 gph, 0.6, and 0.9 gph (1.6 l/h, 2.3 l/hr and 3.5 l/hr)
    Temperature:
      -Water: Up to 100°F (37.8° C)
      -Ambient: Up to 125°F (51.7° C)
    Required Filtration: 120 mesh
    Specifications
    Available in 100' and 500' (30.5 m and 152.4 m) coils
    Coil Color: Copper
    Use with XF Dripline Insert Fittings

    Dimensions

    OD: 0.634" (16mm)
    ID: 0.536" (13.6mm)
    Thickness: 0.049" (1.2mm)

    Model Listing

    XFS - Coil Color: Copper

  • XFS-04-12-500: XFS, 0.4 gph(1.6I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFS-04-18-500: XFS, 0.4 gph(1.6I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFS-06-12-500: XFS, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFS-06-18-500: XFS, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFS-09-12-500: XFS, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFS-09-18-500: XFS, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 500'(152.4m)

    • XFS - Coil Color: Purple

  • XFSP-04-12-500: XFSP, 0.4 gph(1.6I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFSP-04-18-500: XFSP, 0.4 gph(1.6I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFSP-06-12-500: XFSP, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFSP-06-18-500: XFSP, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFSP-09-12-500: XFSP, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFSP-09-18-500: XFSP, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 500'(152.4m)

    • XFS - Coil Color: Purple Stripe

  • XFSPS-04-12-5: XFSPS, 0.4 gph(1.6I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFSPS-04-18-5: XFSPS, 0.4 gph(1.6I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFSPS-09-18-5: XFSPS, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 500'(152.4m)

    • Features

    Custom Smart Spacing

    • Save on irrigation costs
    • Specify any repeating pattern for emitter spacing from 6 to 96 inches
    • Irregular patterns are acceptable as long as the pattern repeats

    GritX Emitters

    • +50% of the time, when systems don’t perform as expected, it's due to clogged emitters
    • Filter-less “self-cleaning” emitter design prevents clogs by allowing grit to pass through easily
    • Market leading Distribution Uniformity, flow rate accuracy, and recovery times
    • Precision manufacturing means exact emitter placement and no negative run out

    Factory to Farm Guarantee

    • Rain Bird manufactures every component of S5 Dripline
    • Proprietary resin blend and coiling machinery limits coil memory to ensure easy and flat roll out
    • Custom pallets guarantee S5 Dripline arrives in pristine shape and is easy to handle
    • Multi-point inspection policy ensures product quality from factory to farm

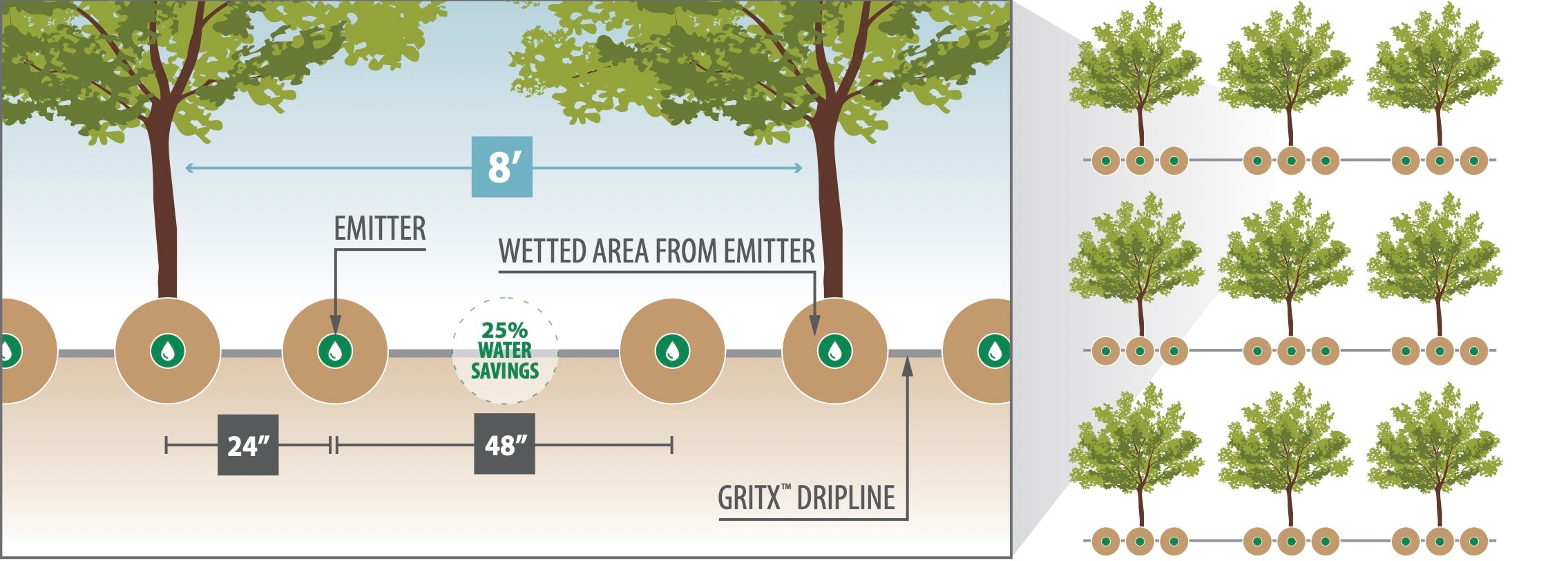

    S5 Dripline Diagram



    Specifications

    Operating Range

    Operating Pressure: 7 to 60 psi (0.48 to 4.14 bar)

    Water Temperature: Up to 110° F (43.3° C)

    Ambient Temperature: Up to 150° F (65.6° C)

    Required Filtration: 120 mesh (125 micron)

    Nominal Flow Rates:

    0.31 gph (1.2 l/h)

    0.42 gph (1.6 l/h)

    0.53 gph (2.0 l/h)

    0.61 gph (2.3 l/h)

    0.93 gph (3.5 l/h)

    1.06 gph (4.0 l/h)



    Standard Emitter Spacing:

    • Specify any repeating pattern for emitter spacing from 6 to 96 inches
    • Irregular patterns are acceptable as long as the pattern repeats



    Tubing Dimensions:

    • 16 mm with 35mil wall: OD 0.610" (15.5mm), ID 0.540" (13.7mm), wall thickness 0.035"(0.9mm)
    • 16 mm with 45mil wall: OD 0.630" (16.0mm), ID 0.540" (13.7mm), wall thickness 0.045"(1.1mm)
    • 18 mm: OD 0.709" (18.0mm), ID 0.619" (15.7mm), wall thickness 0.045"(1.1mm)
    • 20 mm: OD 0.786" (19.9mm), ID 0.690" (17.5mm), wall thickness 0.048"(1.2mm)



    Crop Applications: Almonds, Avocados, Pistachios, Pecans, Walnuts

    cropsS5 Warranty



    Model Listing

    Features

    Simple

    • Rain Bird’s patent-pending 3.5 psi check valve technology keeps the dripline charged with water at all times, increasing uniformity of watering, and conserves water by eliminating the need to recharge the line at the beginning of each watering cycle
    • Through the use of a proprietary tubing material, the XFCV Dripline with heavy-duty check valve is the most flexible dripline tubing in the industry, making it the easiest dripline to design with and install
    • Rain Bird’s low-profile emitter design reduces in-line pressure loss, allowing longer lateral runs, simplifying design, and reducing installation time
    • Variety of emitter flow rates, emitter spacing, and coil lengths provide design flexibility for on-surface areas with or without elevation changes

    Made with Recycled Content

    • All Rain Bird XF Dripline (XFD, XFS, XFCV, XFS-CV) qualify for LEED credit 4.2 because they contain at least 20% Polyethylene post-consumer recycled material by cost. These come in an assortment of coil sizes, flow rates, and emitter spacing

    Reliable

    • The pressure-compensating emitter design provides a consistent flow over the entire lateral length, ensuring higher uniformity for increased reliability in the pressure range of 20 to 60 psi (1.38 to 4.14 bar)

    Durable

    • Dual-layered tubing (brown over black) provides unmatched resistance to chemicals, algae growth, and UV damage

    Grit Tolerant

    • Rain Bird’s proprietary emitter design resists clogging by use of an extra wide flow path combined with a self-flushing action

    Specifications

    • Dimensions:
      • OD: 0.634" (16mm)
      • ID: 0.536" (13.6mm);
    • Thickness: 0.049" (1.2mm)
    • Emitter Spacing:
      • 12" (30.5 cm); 18' (45.7 cm)
      • Europe: 33 cm; 50 cm
    • Coil Length:
      • 100' (30.5 m); 250' (76.2 m) and 500' (152.4 m)
      • Europe: 100 m
    • Coil Color: Brown
    • Use with XF Dripline Insert Fittings, Rain Bird Easy Fit Compression Fittings, or Twist Lock Fittings

    Operating Range

    • Opening Pressure: 14.5 psi (1.0 bar)
    • Pressure: 20 to 60 psi (1.38 to 4.14 bar)
    • Flow rates: 0.6 and 0.9 gph (2.3 l/hr and 3.5 l/hr)
    • Temperature:
      • Water: Up to 100°F (37.8° C)
      • Ambient: Up to 125°F (51.7° C)
    • Required Filtration: 120 mesh

    Model Listing

  • XFCV-06-12-100: XFCV, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 100'(30.5m)
  • XFCV-06-12-250: XFCV, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 250'(76.2m)
  • XFCV-06-12-500: XFCV, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFCV-06-18-100: XFCV, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 100'(30.5m)
  • XFCV-06-18-250: XFCV, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 250'(76.2m)
  • XFCV-06-18-500: XFCV, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFCV-09-12-100: XFCV, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 100'(30.5m)
  • XFCV-09-12-250: XFCV, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 250'(76.2m)
  • XFCV-09-12-500: XFCV, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFCV-09-18-100: XFCV, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 100'(30.5m)
  • XFCV-09-18-250: XFCV, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 250'(76.2m)
  • XFCV-09-18-500: XFCV, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 500'(152.4m)

    • Features

    Extra flexible tubing for fast, easy installation
    Dual-layered tubing (brown over black or purple over black) provides unmatched resistance to chemicals, UV damage and algae growth
    Patented emitter design provides for increased reliability
    Longer lateral runs than competition
    Unique material offers significantly greater flexibility, allowing tighter turns with fewer elbows for easier installation
    Choice of flow rates, spacing and coil lengths provides design flexibility for a variety of non-turfgrass applications
    Use an Air/Vacuum Relief Valve Kit when installation is below soil (pg 147)

    Specifications

    Operating Range
    Pressure: 8.5 to 60 psi (0.58 to 4.1 bar)
    Flow rates: 0.6 gph and 0.9 gph (2.3 l/h and 3.5 l/h)
    Temperature: Water up to 100° F (37.8C); Ambient up to 125° F (51.7C)
    Required filtration: 120 mesh
    Specifications
    Outside diameter: 0.634" (16.1 mm)
    Inside diameter: 0.536" (13.6 mm)
    Wall thickness: 0.049" (1.2 mm)
    Spacing: 12" or 18"
    Lengths: 100', 250', and 500' coils
    Use with XF Dripline Insert Fittings or Rain Bird Easy Fit Compression Fittings

    Model Listing

    XFD - Coil Color: Copper

  • XFD-06-12-100: XFD, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 100'(30.5m)
  • XFD-06-12-250: XFD, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 250'(76.2m)
  • XFD-06-12-500: XFD, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFD-06-18-100: XFD, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 100'(30.5m)
  • XFD-06-18-250: XFD, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 250'(76.2m)
  • XFD-06-18-500: XFD, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFD-09-12-100: XFD, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 100'(30.5m)
  • XFD-09-12-250: XFD, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 250'(76.2m)
  • XFD-09-12-500: XFD, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFD-09-18-100: XFD, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 100'(30.5m)
  • XFD-09-18-250: XFD, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 250'(76.2m)
  • XFD-09-18-500: XFD, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 500'(152.4m)

    • XFD - Coil Color: Purple

  • XFDP-06-12-500: XFDP, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFDP-06-18-500: XFDP, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFDP-09-12-500: XFDP, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFDP-09-18-500: XFDP, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 500'(152.4m)

    • XFD - Coil Color: Purple Stripe

  • XFDPS-06-12-500: XFDPS, 0.6 gph(2.3I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFDPS-06-18-500: XFDPS, 0.6 gph(2.3I/h), 18"(45.7cm) spacing, 500'(152.4m)
  • XFDPS-09-12-500: XFDPS, 0.9 gph(3.5I/h), 12"(30.5cm) spacing, 500'(152.4m)
  • XFDPS-09-18-500: XFDPS, 0.9 gph(3.5I/h), 18"(45.7cm) spacing, 500'(152.4m)

    • Features

    Simple to use, as the flexible tubing makes watering pots and container gardens easy
    Clog resistance through built-in filtration and two outlet holes, 180 degrees apart
    Brown tubing complements Rain Bird XF Dripline
    Works with Rain Bird 1⁄4" barbed Fittings

    Specifications

    Operating Range
    10 to 40 psi (0.7 to 2.7 bar)
    Flow rate at 30 psi (2.0 bar): 0.8gph (3.0 l/h)
    Required filtration: 200 mesh (75 micron)
    Specifications
    Outside diameter: 0.250" (6 mm)
    Inside diameter: 0.170" (4 mm)
    Wall thickness: 0.040" (1 mm)
    Spacing: 6" or 12" (15.25 cm and 30.5 cm)
    Length: 100' (30.5 m) coils

    Model Listing

  • LDQ0806100: 1/4" Landscape Dripline, 6" spacing
  • LDQ0812100: 1/4" Landscape Dripline, 12" spacing

    • Features

    • Simple to use, as the flexible tubing makes watering pots and container gardens easy
      • For use with spot watering emitters and other drip irrigation devices
    • Designed for underground or above-ground installation

    • 25 to 30 psi recommended; 60 psi pressure rating

    Specifications

    • 0.25 in. O.D., 0.17 in. I.D.

    Operating Range

    • 25 to 30 psi recommended; 60 psi pressure rating

    Model Listing

  • T22-50: 1/4" Blank Tubing, 50 feet
  • T22-100: 1/4" Blank Tubing, 100 feet
  • T22-250: 1/4" Blank Tubing, 250 feet

    • Copyright © 2023 Rain Bird Corporation. All rights reserved.
