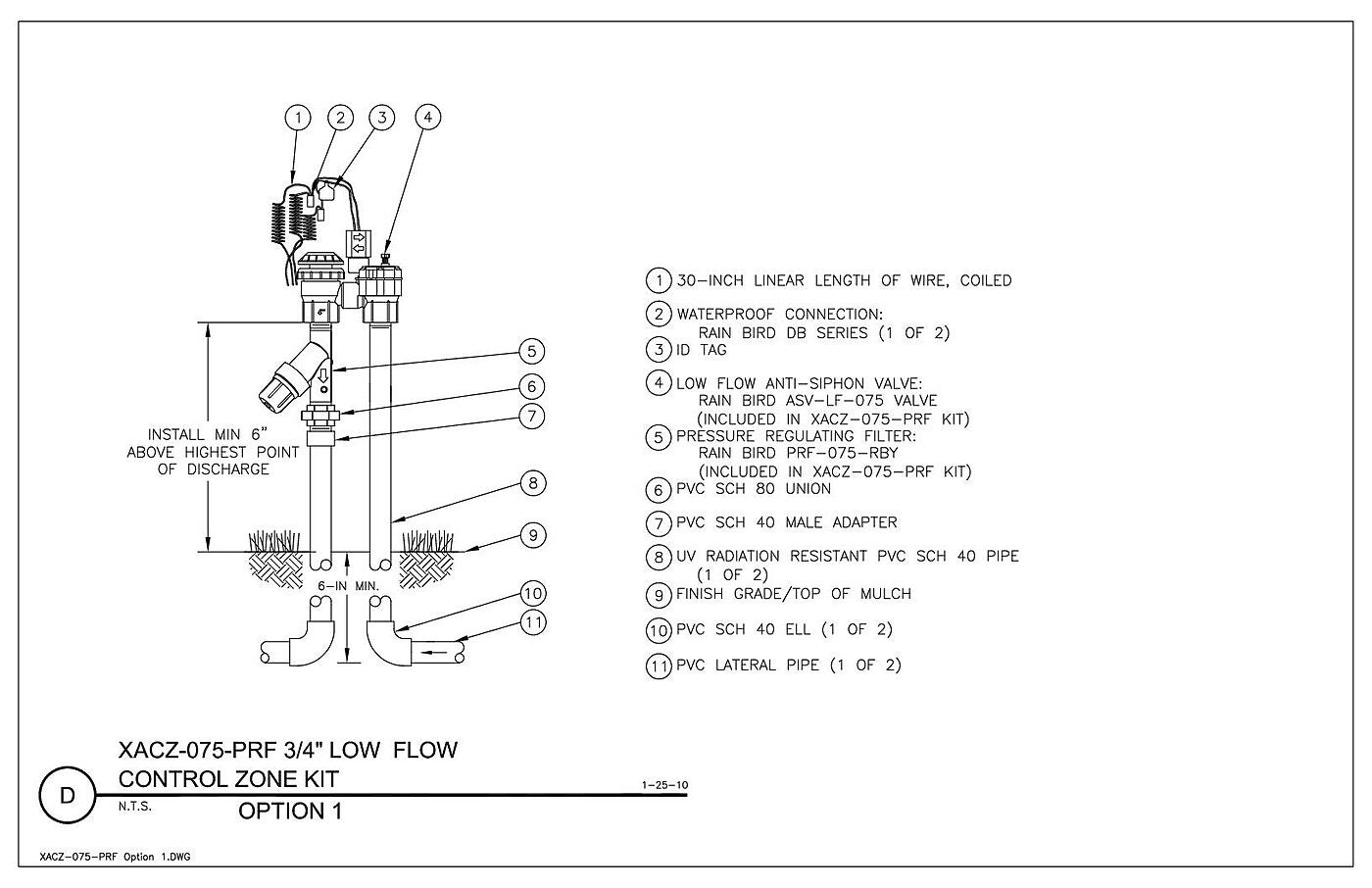

3/4" Low Flow Control Zone Kit w/ Anti-Siphon
Control Zone with Anti-Siphon, Optimized for the lowest flow
The 3/4" Low Flow Control Zone Kit w/ Anti-Siphon is a combination zone that is optimized for the lowest flow of a residential system, and also provides critical back-flow prevention function to prevent cross contamination of indoor water.
- Optimized for Low Flow: Includes the field-proven Low Flow Anti-Siphon Valve, the only valve on the market that can handle low flows (below 3 gpm) without weeping.
- Anti-Siphon: The Low Flow Anti-Siphon Valve has an atmospheric vacuum breaker for backflow prevention and an IAPMO rating.
- Compact Solutions: Shorter kits with only two components (valve plus pressure-regulating (PR) filter) mean that you can fit more Control Zone Kits in a valve box, saving time and money.
Features
Valve - ASVLFV075
Filter type - Stainless steel screen filter; 200 mesh (75 micron)
Flow Rate Capability (0.9 gph dripline with 12"" emitter spacing - 13 to 300 ft (4 to 91m) of dripline
Valve box - Above Ground
Warranty - 3yr Warranty
Controller compatibility -
Compatible with traditionally-wired controllers
Compatible with TBOS / DC controller when used with DC Latching solenoid
Compatible with IVM controllers (ESP-LXIVM/LXIVMP) when used with IVM SOL
Not compatible with 2-wire decoder systems like the ESP-LXD controller
Specs
Operating flow range - 0.20 to 5.0 gpm; (0.8 to 18.9 l/m)
Min diagnostic flow - N/A
Inlet pressure - 20 to 150 psi; (1.4 to 10.3 bar)
Regulated pressure - 30 psi (2.1 bar)
Additional Specification Notes
When installing indoors or on a design where the emission points are more than 5ft above the Control Zone Kit, you must install a check valve after the pressure regulating filter (RBY or Basket Filter). The regulator has a permeable white dot that is designed to relieve excess pressure by slowly releasing water droplets.
Dimensions
LxWxH - 14" Height
Inlet Size - 3/4" x 3/4" NPT
