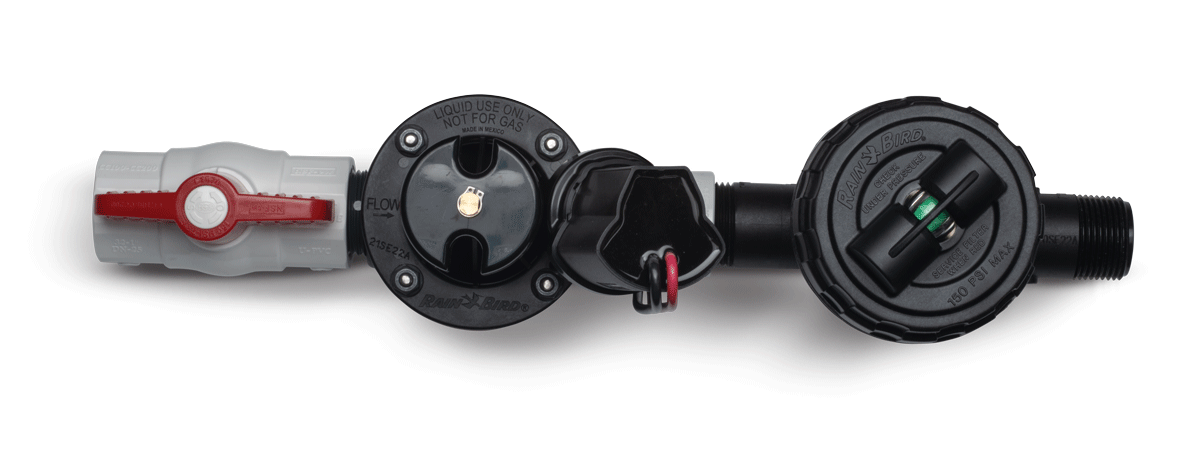

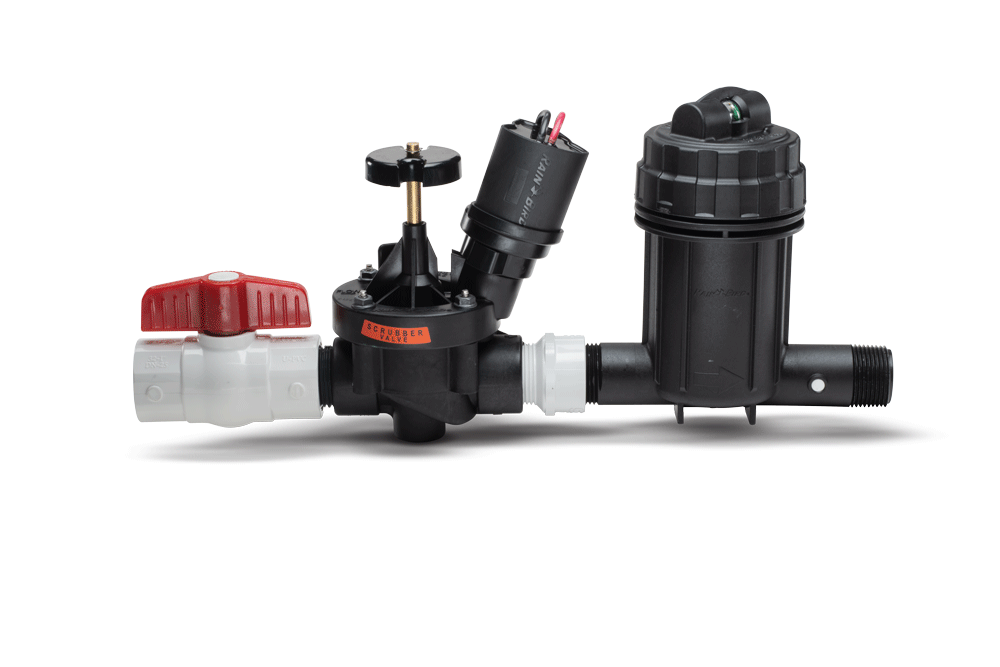

1" Wide Flow Control Zone Kit with IVM

Commercial grade wide flow zone with flow measurement and an easy connection to IVM Controllers

Commercial grade control zone engineered to conquer every application from the purest water source to the harshest environment and everywhere in between.

  • Preinstalled IVM Includes the PESB Valve with IVM which provides patented scrubbing action, and an easy connection to IVM controllers.
  • Quick-Check Basket Filter: Includes a clean / dirty indicator, filtration (stainless steel, 150 mesh) and 40 psi integrated pressure regulation all in an all-in-one compact kit that protects your irrigation system.
  • Easy Shut off: includes Ball valve to easily shut off water to the valve for maintenance, without haven't to shut down from the main source. Convenient for systems with multiple zones.


Valve - 100PESBIVM
Filter type - Quick Check Basket Filter; 150 mesh (100 micron)
Flow Rate Capability (0.9 gph dripline with 12" emitter spacing) - 20 to 1300 ft (6 to 396m) of dripline
Valve box - Mini-Standard Rectangular
Warranty - 3yr Warranty
Controller compatibility -
Compatible with traditionally-wired controllers
Compatible with TBOS / DC controller when used with DC Latching solenoid
Compatible with IVM controllers (ESP-LXIVM/LXIVMP) when used with IVM SOL (shipped with this model)
Compatible with 2-wire decoder systems like ESP-LXD controller


Operating flow range - 0.3 to 20.0 gpm; (1.13 to 75.7 l/m)
Min diagnostic flow - 3gpm
Inlet pressure - 15 to 150 psi; (1,0 to 10,3 bar)
Regulated pressure - 40 psi (2.8 bar)
Additional Specification Notes
* For flows below 5gpm Rain Bird recommends use of upstream filtration to prevent debris from collecting below the diaphragm


LxWxH - 14" Length
Inlet Size - 1" x 1"  NPT
