LX-IVM Compatible Pump Start Relay

Specifically designed to work with the Rain Bird LX-IVM Controller

The Rain Bird line of pump start relays work with a lawn controller’s start/stop command to facilitate the electrical path from the breaker box to the pump motor. Rain Bird PSR110/220-IVM models are specifically designed to work with the Rain Bird LX-IVM Controller through the use of a 9 volt latching relay. This provides “pilot duty” operation for all types of electrically driven pump equipment.

Features

40 AMP UL listed relay
Quick connect terminals with wire nuts
Grounding provision
Compatible with ESP-LX IVM & ESP-LX IVM PRO Controllers
Compatible with 110 or 220 VAC 3/4 hp thru 5 hp* single phase pumps
Grey “baked-on” powder coating, for long life in difficult environments

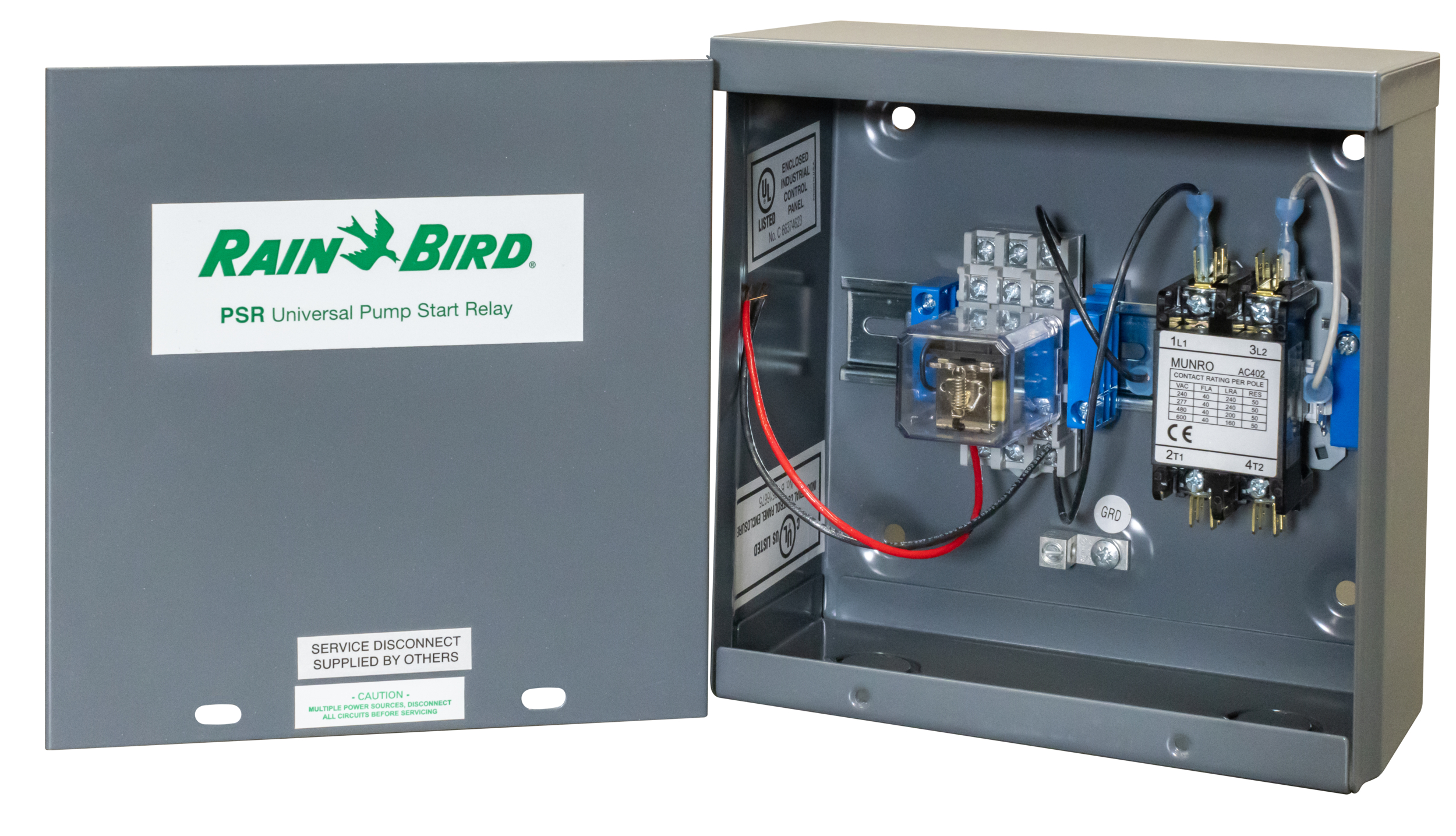

Housed in compact NEMA 3R weather tight enclosures
UL Listed components and backed by a limited two-year warranty
Enclosure
UL Listed
Nema 3R
Powder-coated steel – Grey

Specs

Electrical Information
Coil Voltage: 24v
Electrical Rating: 120v – 24 FLA, 240v – 28 FLA
Largest Motor: 120v – 2 hp, 240v – 5 hp
Short Circuit Rating: 120v – 5kA, 240v – 5kA
Control voltage required: IVM-OUT Device will supply the required 9 volt DC current
Hertz: Sixty (60)
Inrush/run: 950mA/360mA

Dimensions

6” w x 6” h x 4” d

Model Comparison

PSR110-IVM: IVM Pump Start Relay - 110V
PSR220-IVM: IVM Pump Start Relay - 220V
