1.5" High Flow Control Zone Kit (Non-Potable)
Run Up to 62 gpm for Large Zones for big savings on Larger Zones
Delivering a flow rate up to 62 GPM- The highest in its category - and a design that minimizes friction loss, the 1.5” Inline Control Zone Kit gives you the versatility to take on larger zones. It’s the best option to save time and money when installing commercial drip or spray irrigation.
- Higher Flow, Less Friction: The control zone gives you unmatched versatility for commercial drip and spray irrigation applications - including non-potable. The zone combines a high flow range of 15‐62 gpm with and preserves water pressure to deliver the prescribed minimum PSI.
- Convenience That's Ready to Go: Using this kit with the highest maximum flow rate available, you can cover large zones while using fewer kits -- saving money on every job.
- Long-term reliability: These preassembled kits provide on/off control, filtration, and pressure regulation with minimal connection points; so there is less chance of leakage at the connections, both at installation and over the life of the system.
Features
Valve - 150PESBR
Filter type - Large capacity disc fliter; 120 mesh (130 micron)
Flow Rate Capability
(0.9 gph dripline with 12" emitter spacing) - 1000 to 4000 ft (305 to 1209m)of dripline

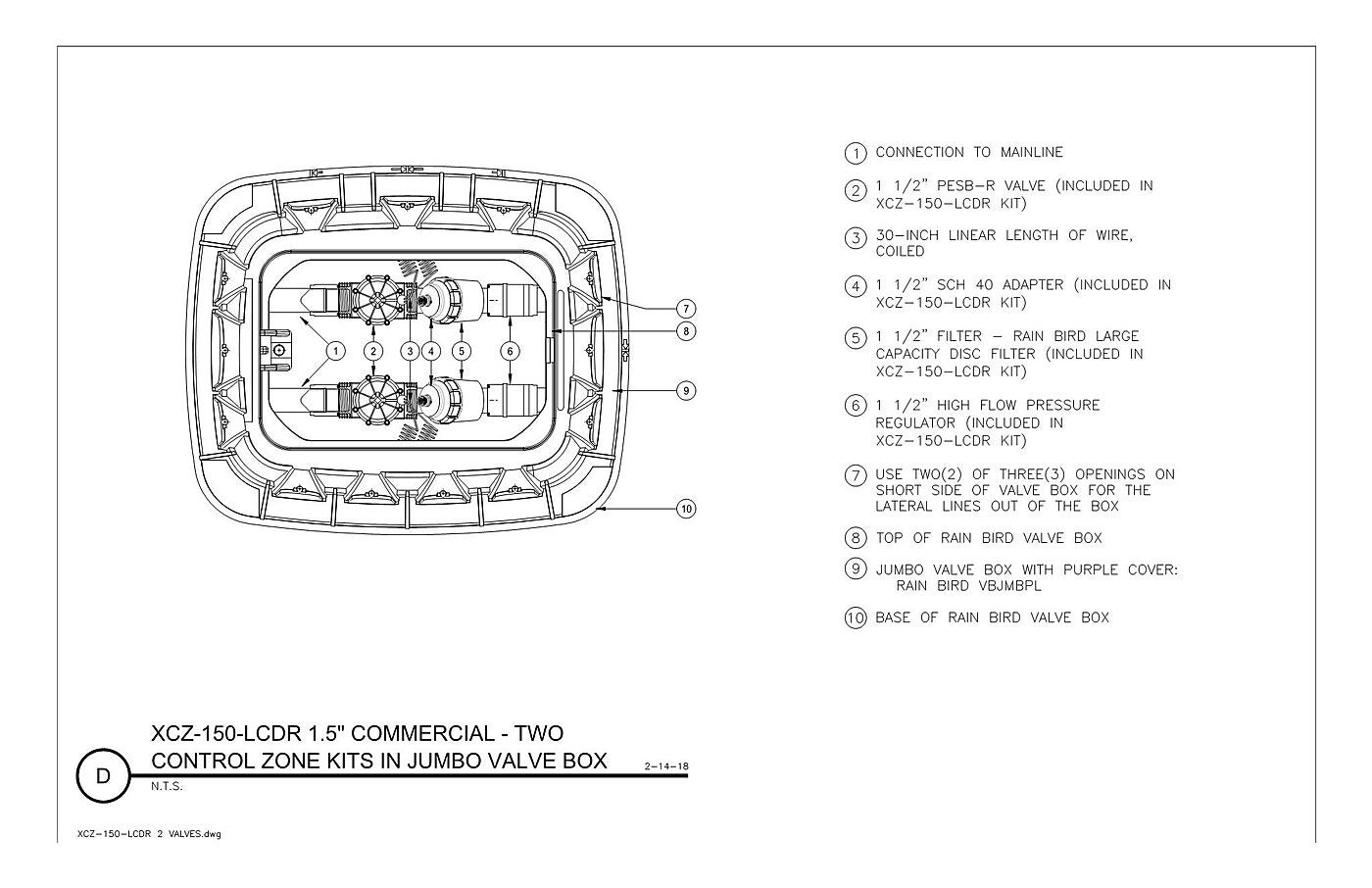

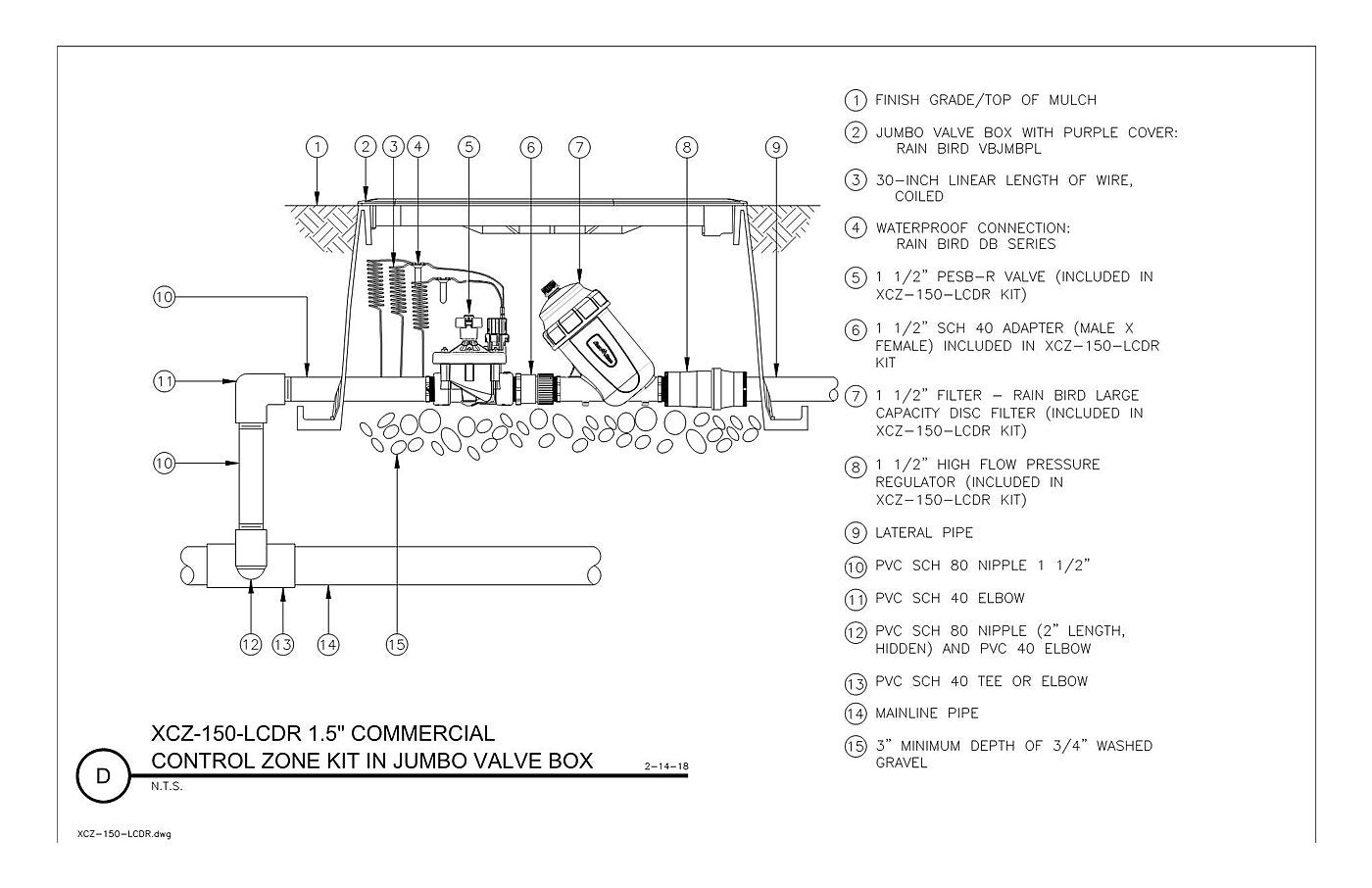

Valve box - Jumbo Rectangular
Warranty - 3yr Warranty
Controller compatibility -
Compatible with traditionally-wired controllers
Compatible with TBOS / DC controller when used with DC Latching solenoid
Compatible with IVM controllers (ESP-LXIVM/LXIVMP) when used with IVM SOL
Compatible with 2-wire decoder systems like ESP-LXD controller
Specs
Operating flow range - 15 to 62 gpm; (56.8 to 234.7 l/m)
Min diagnostic flow - N/A
Inlet pressure - 15 to 115 psi; (1.03 to 7.9 bar)
Regulated pressure - 40 psi (2.8 bar)
Dimensions
LxWxH - 23-1/2" Length
Inlet Size - 1.5" x 1.5" NPT
