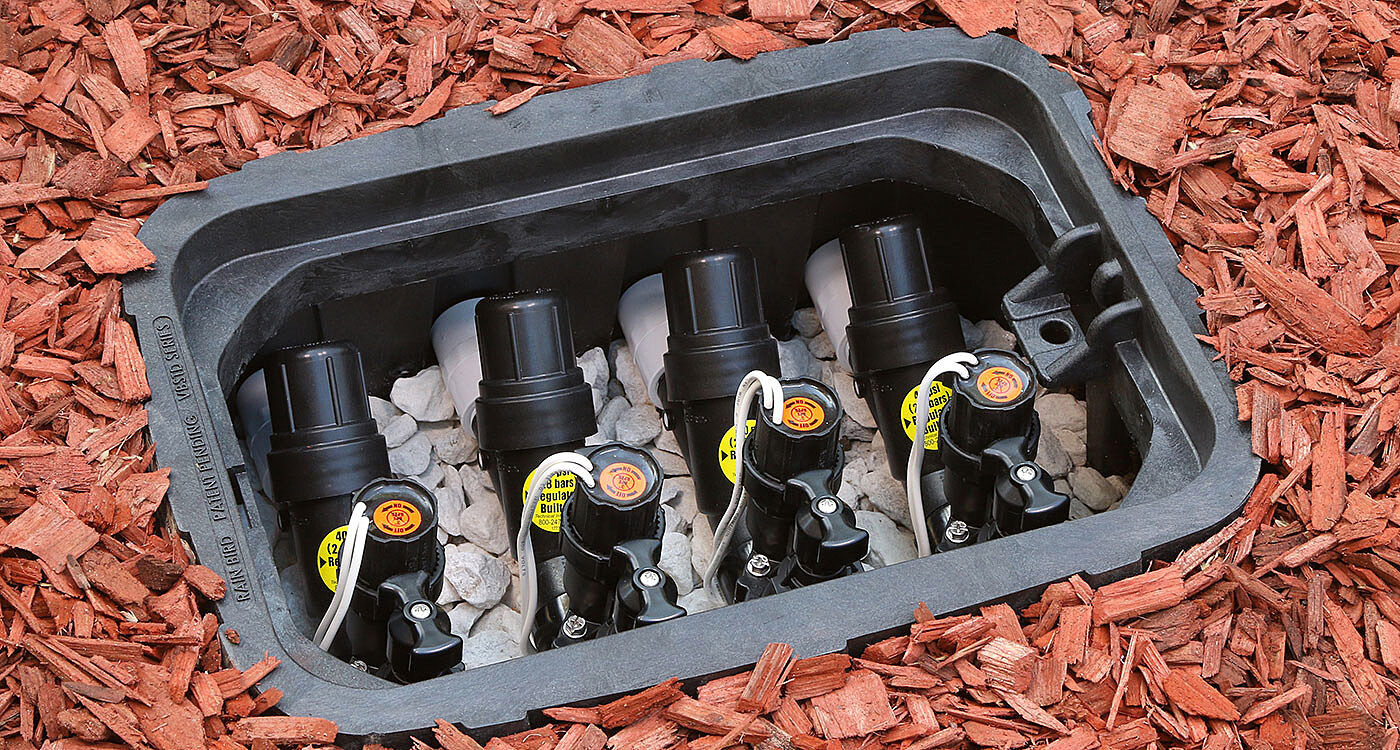

1" Medium Flow Control Zone Kit
Preassembled Control Zone Kit with popular DV Series Valve
Install and maintain your more demanding residential drip systems with a zone that includes the most trusted premium valve chosen by professionals worldwide for their consistent, problem-free performance.
- Versatility: Preassembled Control Zone Kit with popular DV Series Valve.
- Compact solution: The pressure regulating (PR) RBY filter provides the protection of downstream components you need in a low-volume system, in a compact design.
- Long-term reliability: These preassembled kits with PR Filters provide on/off control, filtration, and pressure regulation with only two parts; so there is less chance of leakage at the connections, both at installation and over the life of the system.
Features
Valve - 100DV
Filter type - Stainless steel screen filter; 200 mesh (75 micron)
Flow Rate Capability
(0.9 gph dripline with 12" emitter spacing) - 200 to 1000 ft (61 to 304m) of dripline

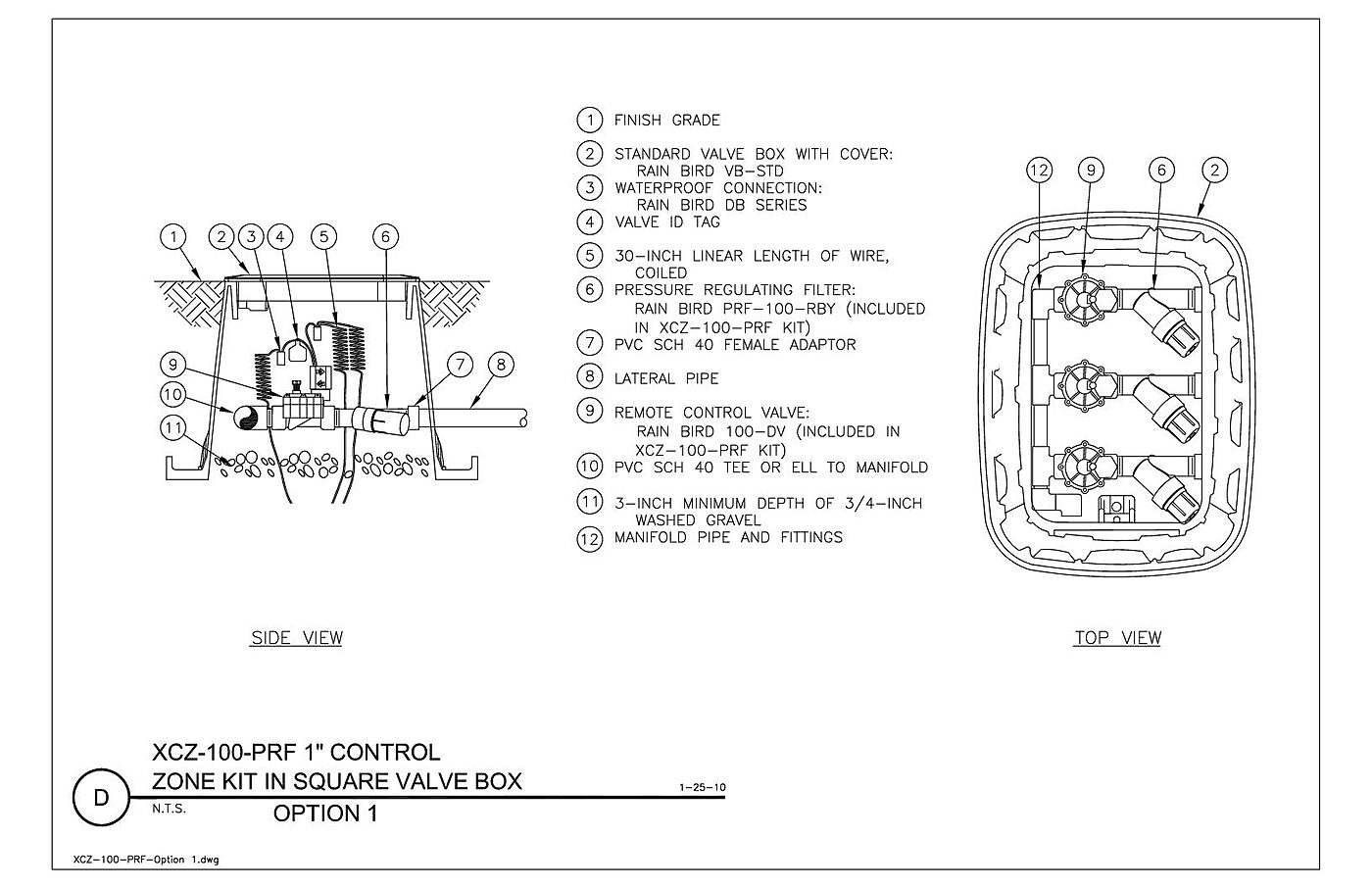

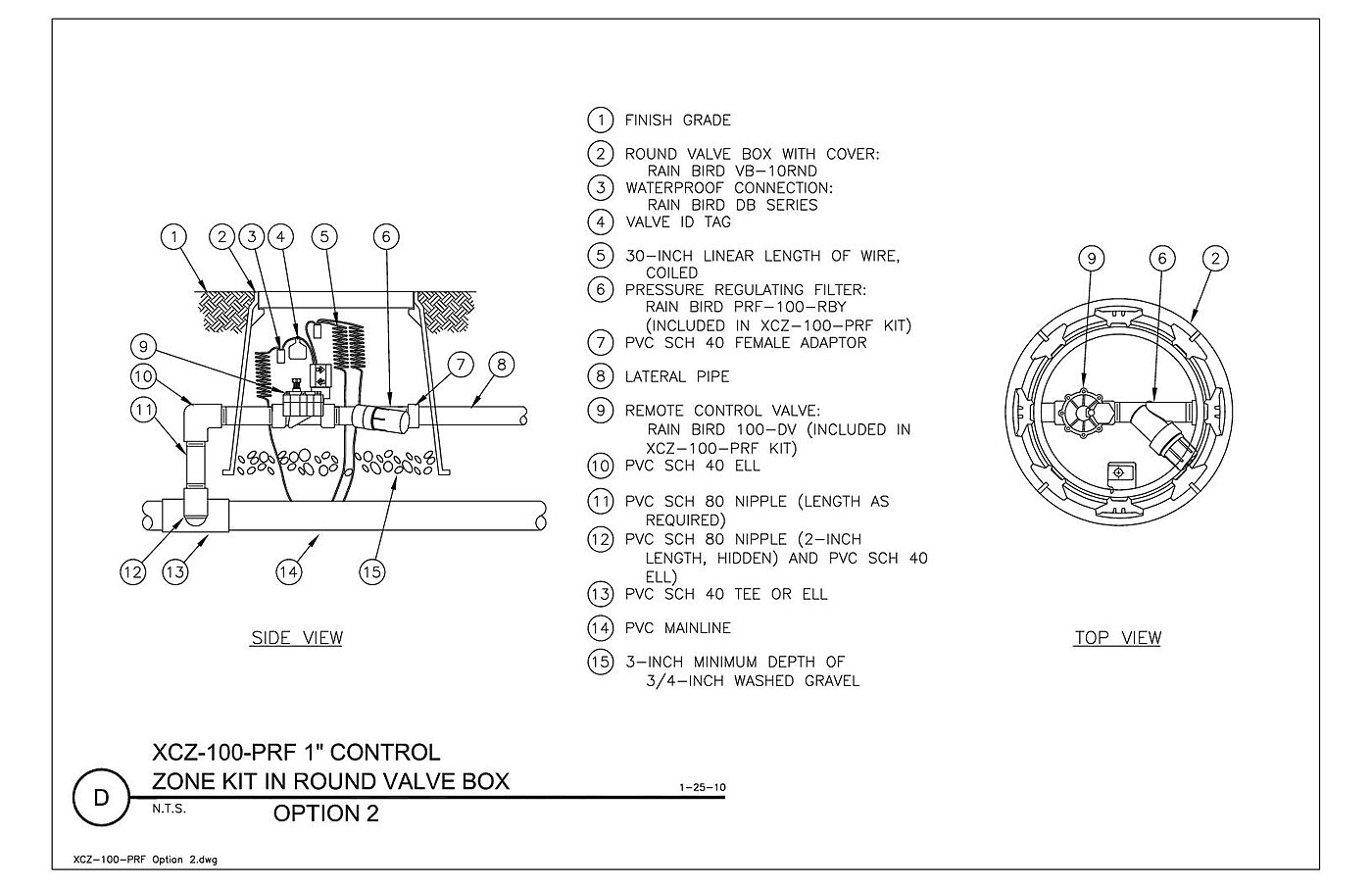

Valve box - Mini-Standard or 10" Round
Warranty - 3yr Warranty
Controller compatibility -
Compatible with traditionally-wired controllers
Compatible with TBOS / DC controller when used with DC Latching solenoid
Compatible with IVM controllers (ESP-LXIVM/LXIVMP) when used with IVM SOL
Not compatible with 2-wire decoder systems like the ESP-LXD controller
Specs
Operating flow range - 3 to 15 gpm; (11.4 to 56.8 l/m)
Min diagnostic flow - N/A
Inlet pressure - 20 to 150 psi; (1.4 to 10.3 bar)
Regulated pressure - 40 psi (2.8 bar)
Dimensions
LxWxH - 10" Length
Inlet Size - 1" x 1" NPT
