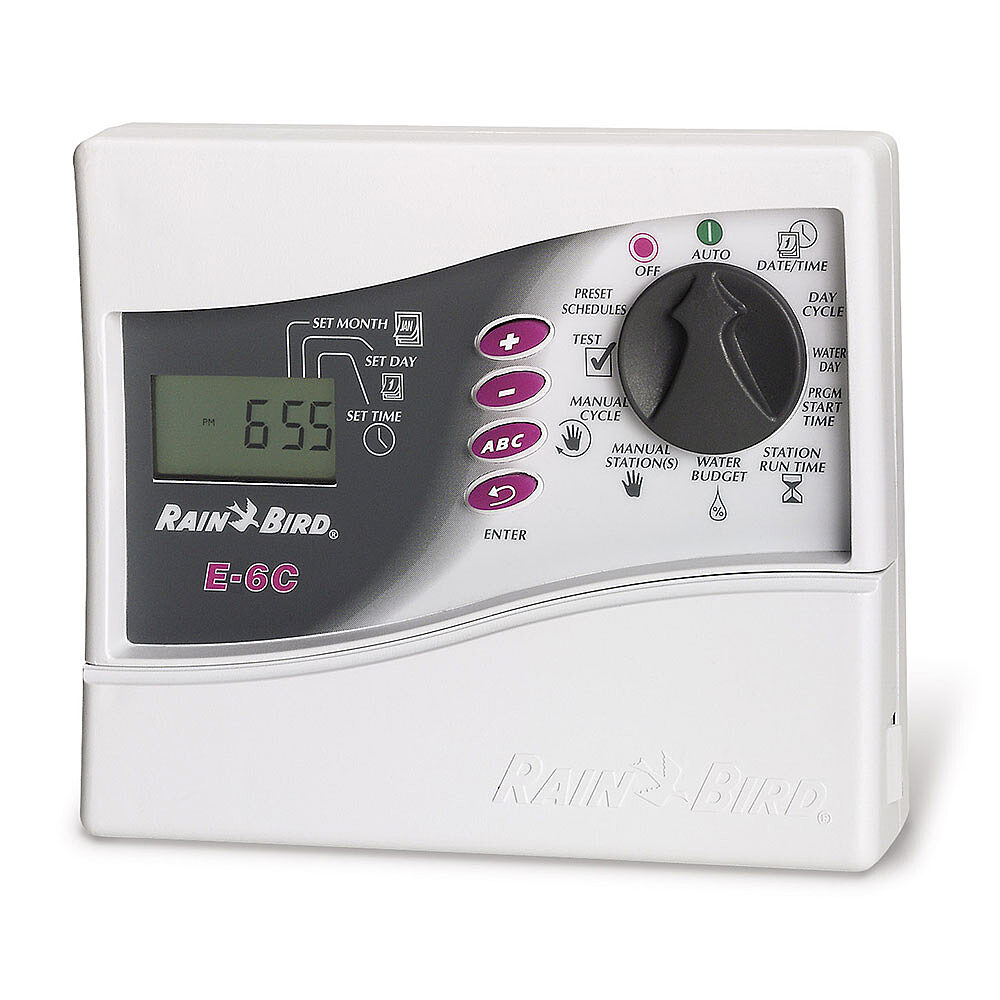

Ec Series

(Includes models E-4C, E-6C, E-9C)


Incorporating E Class technology for field-proven reliability, the Ec Series irrigation controller offers preset watering schedule options, including one for the establishment of a new lawn. The sleek compact design with programmability under battery power can even be set up months prior to AC hookup to the job site.


  • Preset Schedules for quick and simple set-up of common watering schedules
  • Programmable under battery power for programming prior to installation or AC hookup
  • Easy to follow installation, programming and operation
  • English and Spanish manual
  • Test Program (1-10 min. all stations) for system operational testing
  • Battery backup for memory and time protection, in case of power outage (battery included)
  • Default program in case a power outage outlasts the memory protection (The default program automatically clears itself when the controller is reprogrammed.)
  • Flashing LCD (in AUTO setting) to indicate operation under default program
  • Electrical surge protection (input) for reliability
  • Diagnostic circuit breaker without a fuse identifies a station with valve or wire fault and continues to water operable station
  • Safety listings: UL, CUL, CSA, CE, FCC, C-Tick
  • Year 2000 compliant
  • Toll-free Technical Service
  • Three year professional customer satisfaction policy
  • Three programs (A, B, and C), with independent cycles, allow mixed irrigation applications
  • 365-day calendar for ODD or EVEN day watering or ODD-with-31st-of-the-month-off selection per program (adjusts for leap-year)
  • Repeating day cycles, allow irrigation every 1, 2, 3, 4-days, etc. up through 7. (In the 7-day weekly cycle any day can be set ON or OFF as a watering day.)
  • Global Water Budget for seasonal adjustments
  • Manual "clear" function allows manual erasure of all programs
  • Auto-sensing a.m./p.m. or 24-hour-format time display mode


  • Programming schedule options: ODD day/date watering (per program), EVEN day/date watering (per program), 1 through 6-day repeating cycle (per program), 7-day weekly cycle with any day ON or OFF setting, and ODD less 31st day of the month watering.
  • Station Timing: 0 to 240 minutes in 1-minute increments
  • Automatic starts per water day: 12 start times (4 per program per day)
  • Water Budgeting: 10%-200% in 10% increments
  • Input required: 117 VAC ± 10%, 60 Hz (230 VAC international models available)
  • Output 24 VAC @ 0.65A
  • Valve capacity: One 24 VAC solenoid valve per station plus a master valve
  • Terminal strip capacity: accepts #20, #18, or #16 AWG(0,813 mm, 1,22 mm, or 1,63 mm) size valve wire


  • Width: 6 1/2" (16,5 cm)
  • Height: 5 5/8" (14,2 cm)
  • Depth: 1 5/8" (4,0 cm)
