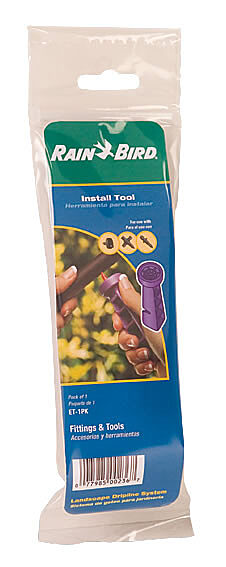

Drip Emitter Installation Tool

  • The patented multi-function tool simplifies adding or removing Spot Watering Emitters, ¼" Fittings, and Tubing Plugs.
  • The tool makes it easy to grip the small parts for insertion into the ends of 1/4" tubing or the sidewall of 1/2" tubing
  • An additional slot in the tool also allows removing any existing fittings you may wish to replace or plug


Using the Emitter Tool

Step 1

Place the Spot Watering Emitter on end of tool. Press barbed point into side wall of ½" Tubing.

Note: The Emitter Tool also works with ¼" Barbed Couplings and with ¼" Barbed Tees.

Step 2

Pull tool away, leaving the Spot Watering Emitter embedded in tubing.

Step 3

Push ¼" tubing onto the Spot Watering Emitter.

Step 4

To remove Spot Watering Emitters, use side of tool.

Step 5

¼" Tubing Plugs can be used to seal holes in ½" tubing. Use bottom of Emitter Tool to insert these plugs.



  • ET/1PK
