1.5" Commercial Control Zone Kits

Run Up to 62 gpm for Big Savings on Larger Zones

Delivering a flow rate up to 62 GPM—the highest in its category—and a design that minimizes friction loss, the 1.5” Commercial Control Zone Kit gives you the versatility to take on larger zones. It’s the best option to save time and money when installing commercial drip or spray irrigation.

  • Simplified Installation
  • Increased Reliability
  • Unbeatable Value


Higher Flow, Less Friction
An industry‐leading flow range of 20‐62 gpm gives you unmatched versatility for commercial drip and spray irrigation applications
With the highest maximum flow rate available, you can cover large zones while using fewer kits, saving money on every job
Engineered to minimize friction loss, these kits preserve your water pressure in systems with a prescribed minimum PSI
Convenience That's Ready to Go
Ready out of the box, the 1.5" Commercial Control Zone Kit saves you and your crew valuable installation time on every job

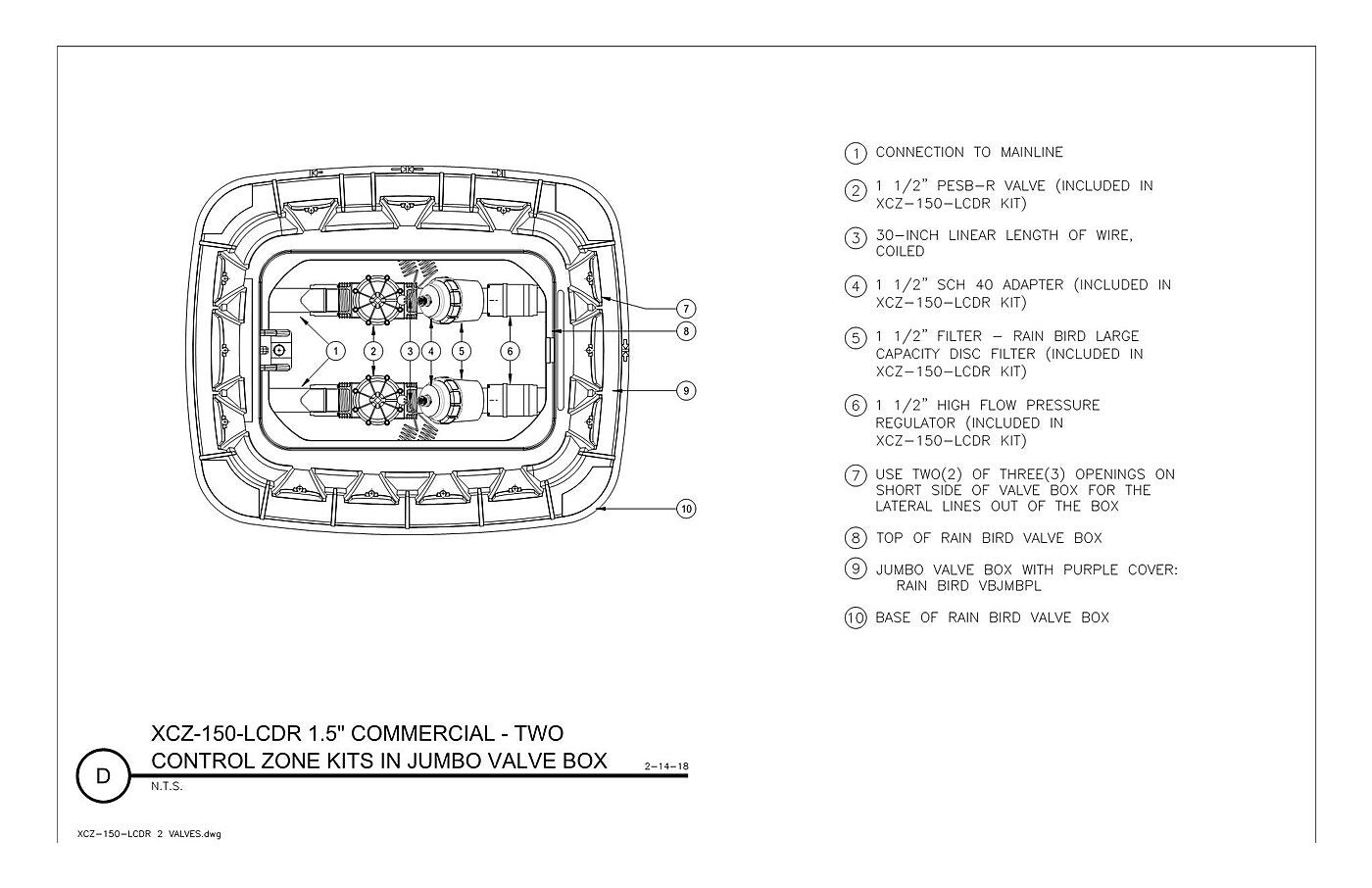

An intelligent, compact design provides easier access for maintenance and allows you to fit two kits into a jumbo valve box
Reliability That's Built In
Pre‐assembled units help to prevent mistakes that can occur during assembly
Designed with fewer components, each kit minimizes the connection points in your system making it less susceptible to stress cracks
Reclaimed water models (XCZ-150-LCDR) are engineered with components and materials that stand up to harsh chemicals
Backed by a 3-year trade warranty, you can install each kit with confidence


Flow Range: 20 to 62 gpm (75.7 l/min to 234.69 l/min)
Inlet Pressure: 15 to 115 psi (1.03 to 7.9 bar)
Regulated Pressure: 40 psi (2.8 bar)
Filtration: 120 mesh (130 micron)
Water Temperature: 33° F up to 110° F (0.5° C to 43° C)
Ambient Temperature: 33° F up to 125° F (0.5° C to 52° C)
Valve Type:
XCZ-150-LCS: 1.5" PEB

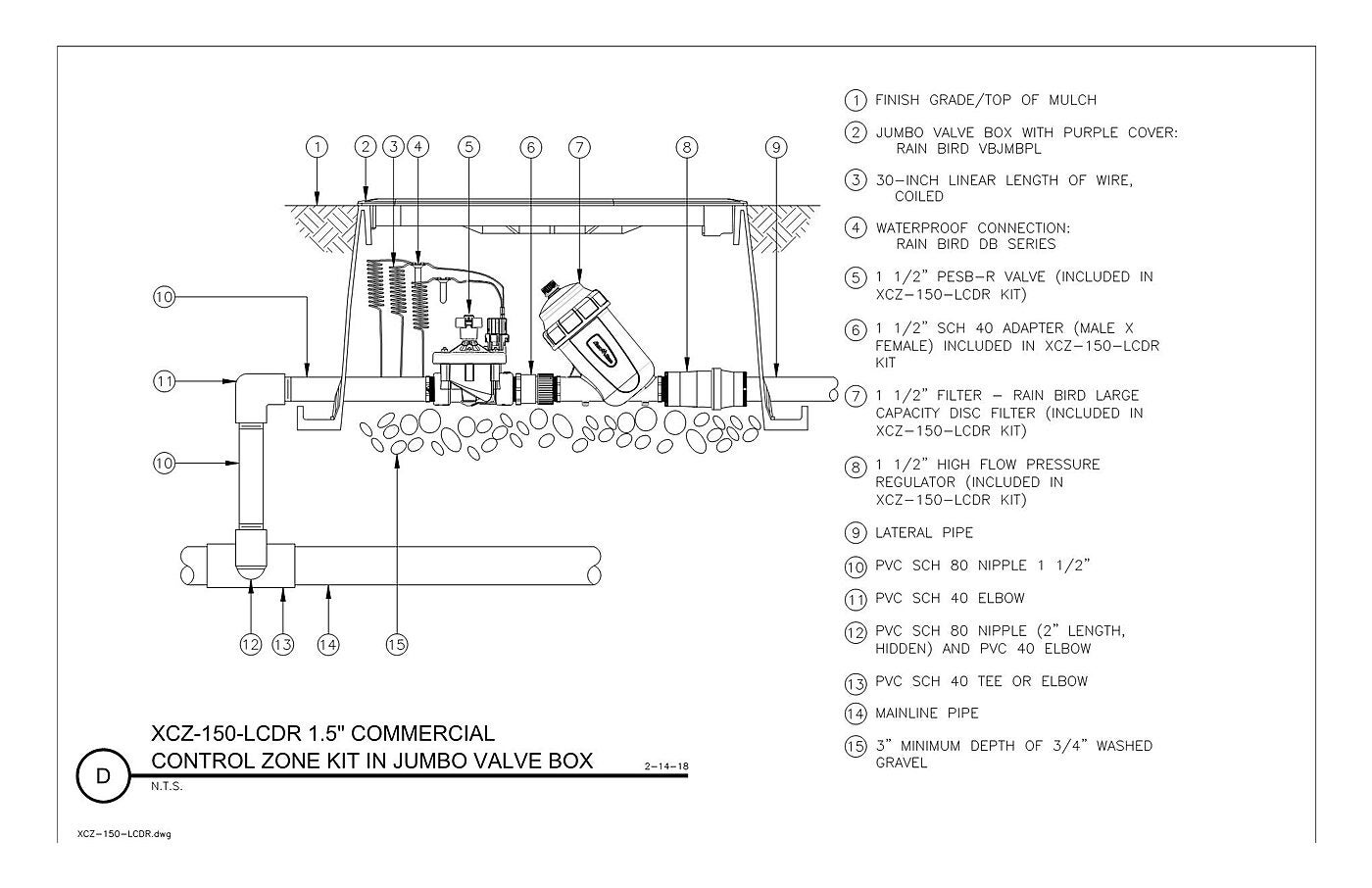

XCZ-150-LCDR: 1.5" PESB-R
Power: 24 VAC 50/60 Hz (cycles/sec) solenoid
Inrush Current: 0.41A (9.84 VA) at 50/60Hz
Holding Current: 0.14A (3.43VA) at 50/60Hz
Coil Resistance: 30-39 Ohms
Two-wire compatible with ESP-LXD Decoders


XCZ-150-LCS: 15 1/4 " L x 5 3/4" W x 9½" H
XCZ-150-LCDR: 18 1/2" L x 5 3/4" W x 9½" H

Model Comparison

  • XCZ-150-LCS: 1½" (3.81 cm) Stainless Steel Screen Filter, 120 Mesh (130 Micron); Surface Area: 42 in2 (270 cm2)
  • XCZ-150-LCDR: 1½" (3.81 cm) Disc Filter, 120 Mesh (130 Micron); Surface Area: 48 in2 (310 cm2)
  • Replacement Filters:

  • LGFC120MD: Replacement Disk Filter
  • LGFC120MS: Replacement Screen Filter
