Understanding What Each Major Part of a Sprinkler System Does
Picture this: you're standing in your yard, watching your sprinklers arc gracefully across the lawn. Beneath the surface, an entire system of hidden components is working together.
By understanding the major parts of your sprinkler system, you’ll make smarter choices about maintenance, upgrades, and water conservation, saving money on your water bill and protecting one of Earth’s most precious resources.
This guide breaks down your sprinkler system piece by piece so you can speak confidently with contractors, troubleshoot common issues, and make informed decisions.
Why Knowing Your Sprinkler System Components Matters
Think of your sprinkler system like your car. You don't need to be a mechanic, but knowing the difference between an engine and a transmission helps you communicate problems and manage upkeep.
When you understand how each component works, three important benefits follow:
- Water conservation. Spot overwatering or poor coverage before water is wasted.
- Simpler maintenance. Handle minor fixes yourself and identify problems early.
- Better contractor conversations. Understand estimates and recommendations clearly.
The Heart of Your System: Controllers

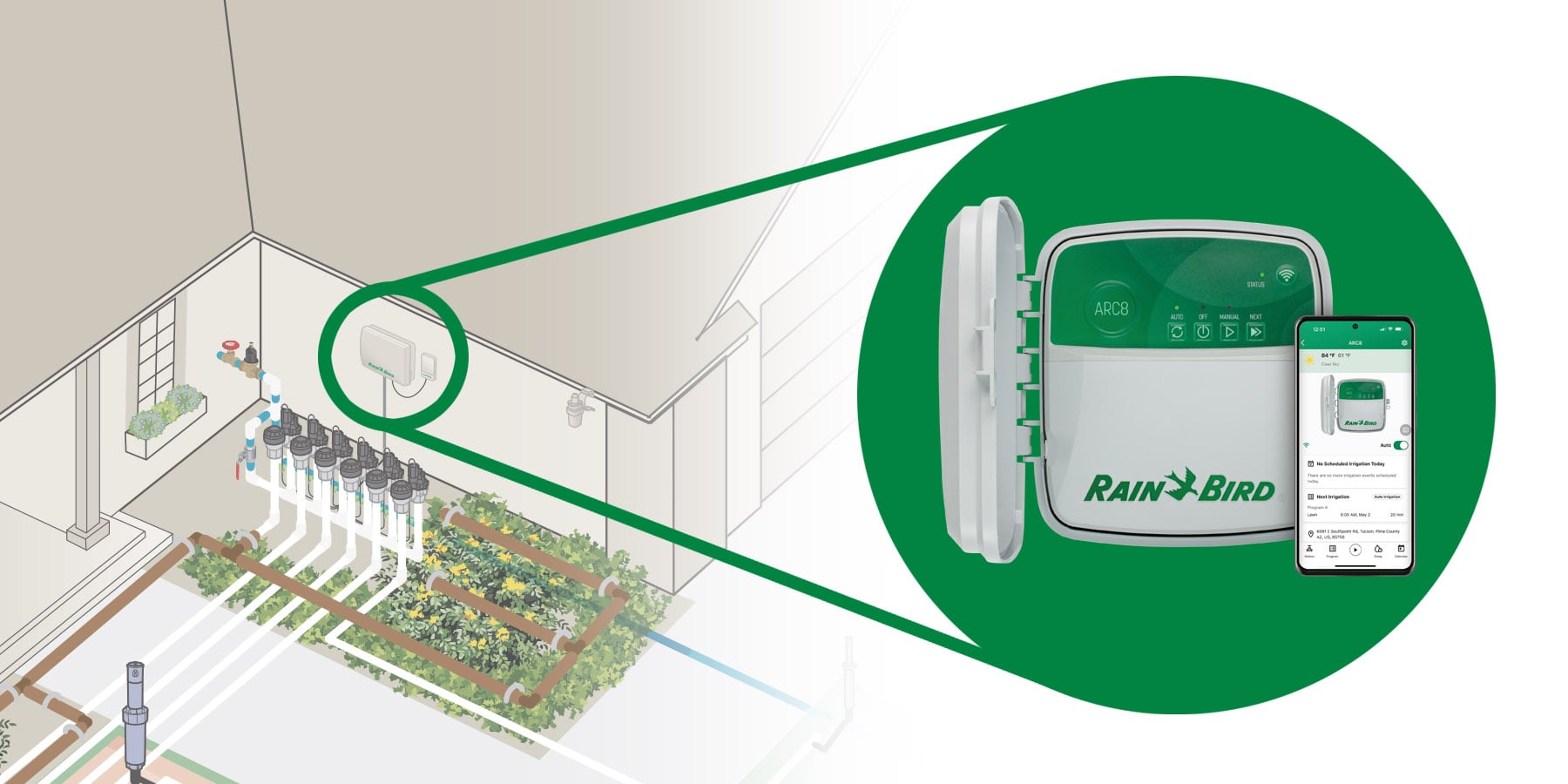

Your controller is the “brain” of the system, telling each zone when to run, how long to water, and when to rest.
Modern controllers do so much more than keep time. They adjust for seasons, weather, and plant needs.

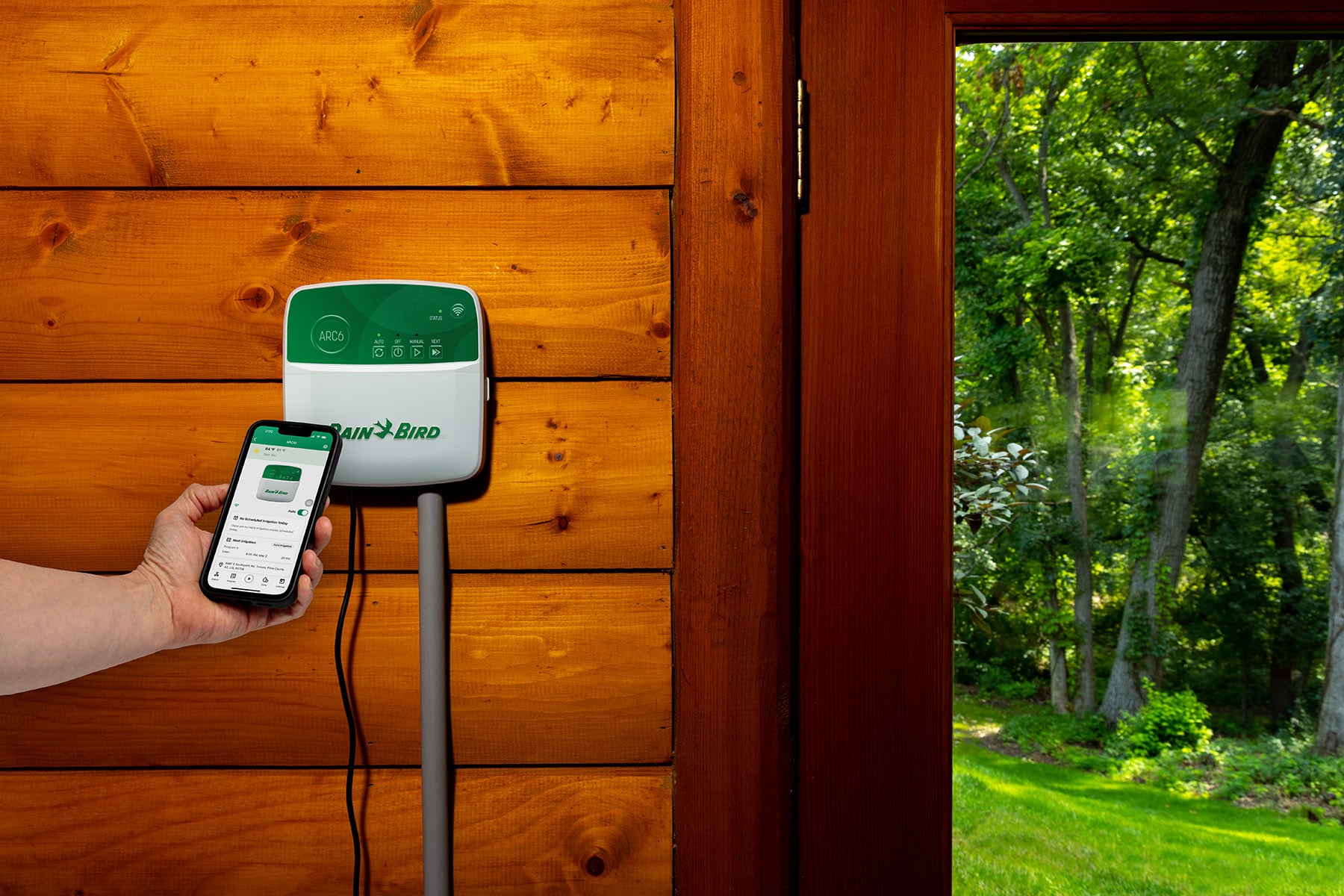

Rain Bird ARC Series Smart Controllers
Rain Bird ARC series smart controllers bring advanced efficiency with:
- Weather-based scheduling that responds to real-time conditions.
- Mobile app control from anywhere.
- Intuitive programming with the Rain Bird 2.0 app.
The results: up to 7,600 gallons saved annually, 20% lower water bills, and worry-free scheduling.
Protecting Your Water Supply: Backflow Preventers
Backflow preventors safeguard your drinking water by stopping irrigation water from flowing backward into your home’s supply.
They come in different types, ranging simple vacuum breakers to advanced reduced-pressure assemblies, but all must meet local codes and require professional installation and annual testing.
Once installed, they work silently in the background to keep your water safe.

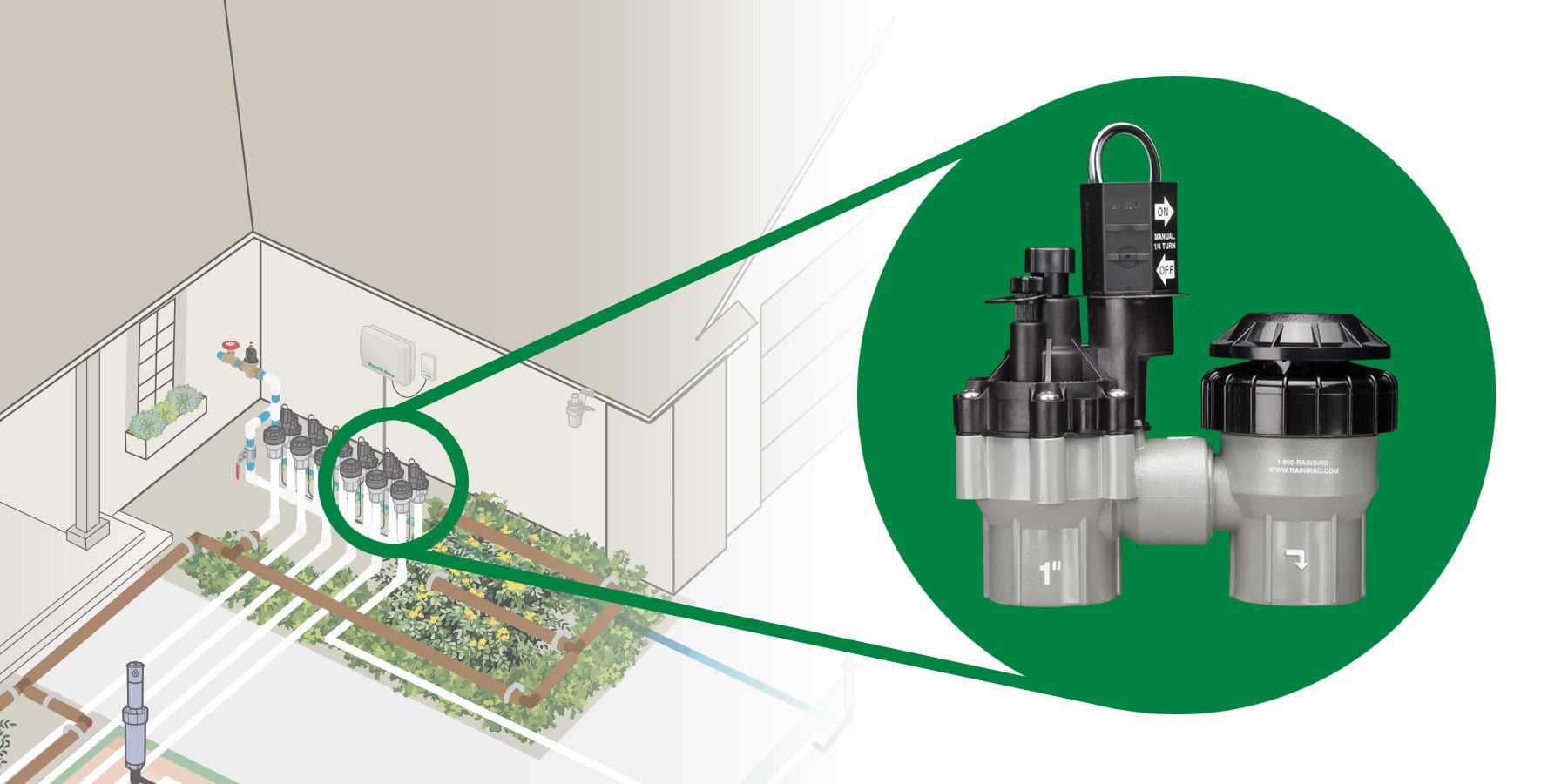

Directing the Flow: Pipes and Valves
If controllers are the brain, pipes and valves are the muscles of your system. Pipes deliver water across your landscape, while valves open and close zones on command and regulate pressure to ensure each sprinkler or drip emitter works efficiently.
Pipes, made of PVC or poly plastic, are like veins that distribute water to a network of valves around your property. Depending on where you live, local codes may require anti-siphon valves installed above ground, or inline valves installed below ground in a valve box.

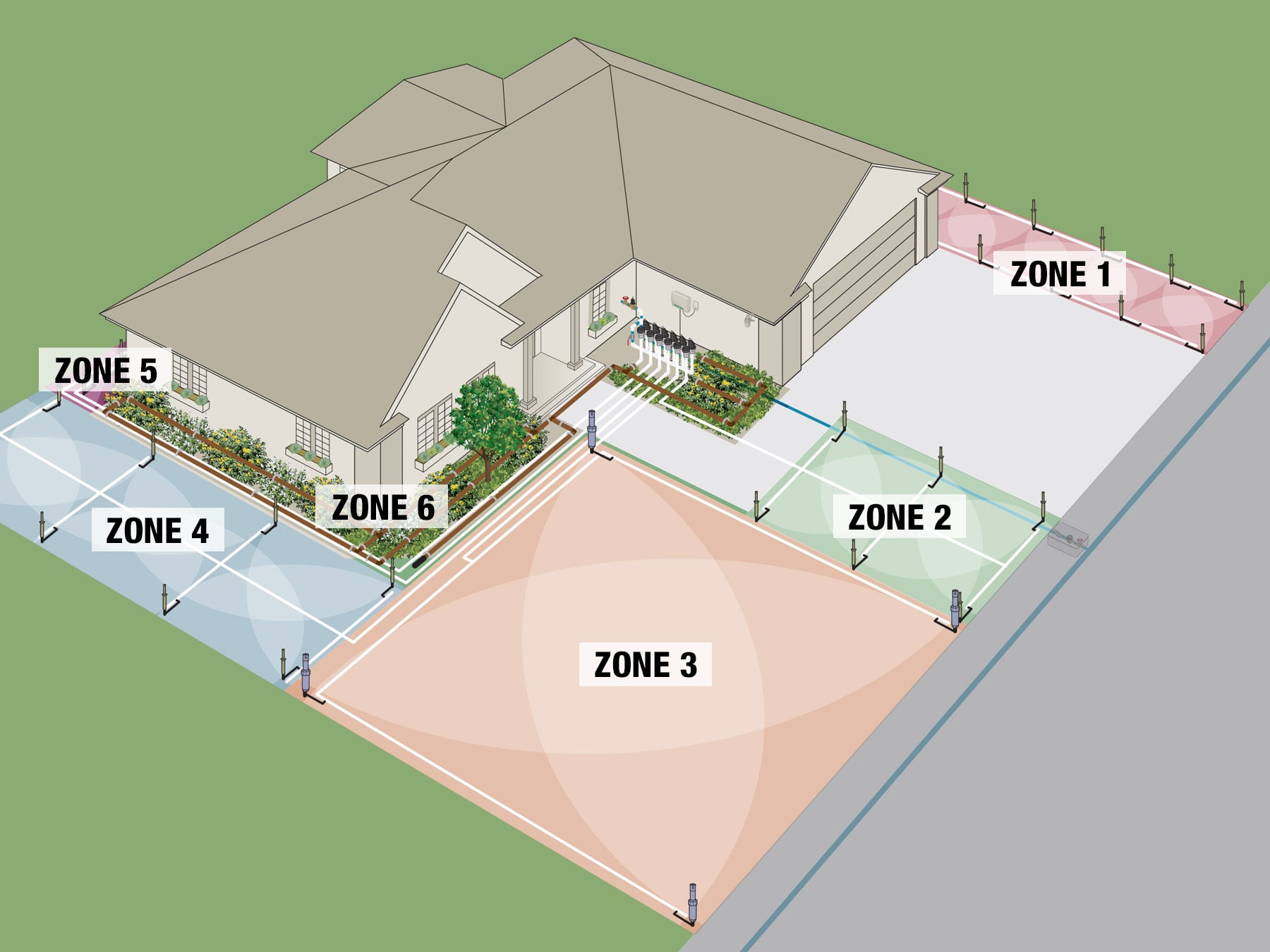

Most residential systems use electric valves that respond to signals from your controller. When the controller says, "water zone three," the valve for zone three opens while all others stay closed. This lets you water your lawn differently than your flower beds, or your front yard differently than your backyard.
Warning signs of valve issues:
- Zones that won't turn on or off.
- Unusual water pressure.
- Leaks around valve boxes.
These are often fixable but may need professional expertise.
Delivering the Water: Rotors versus Spray Heads
Not all sprinkler heads are the same. Understanding the difference between rotors and sprays will help you choose the right tool for your landscape.
Rotors: Rotate streams of water over large areas, ideal for lawns and windy spots. You'll typically see them in lawn areas where you need broad coverage across wide spaces.
Pop-Up Spray Heads: Provide fixed spray patterns for precise watering in beds or smaller areas. They're perfect for flower beds, or where control over spray pattern is desired.
Tip: Use the right tool for the right space. For lawns, Rain Bird rotors with Rain Curtain™ technology is a nozzle design that delivers larger water droplets for more even coverage and better wind resistance. It ensures uniform watering from the sprinkler head all the way to the outer edges, reducing dry spots and water waste. For beds, spray heads offer accuracy for irregularly shaped areas and mixed plantings.
Precision Matters: Nozzles
Nozzles may be small, but they play one of the most critical roles in your irrigation system. Both rotors and pop-up spray heads rely on nozzles to determine how water is delivered, whether it’s reaching plants close to the sprinkler or throwing water farther out to cover open lawn areas.
The right nozzle ensures even coverage across the entire zone, avoiding dry spots near the head and overwatering at the edges. To achieve this, the nozzle must be properly matched with your system’s water pressure and flow rate. If pressure is too low, coverage suffers; if it’s too high, misting and runoff waste water.
Nozzles come in a variety of spray patterns and precipitation rates, allowing you to customize watering for unique spaces, like narrow strips, corners, or irregular beds, without redesigning your landscape. Matching precipitation rates across different nozzles ensures each part of your landscape receives the same amount of water over time, regardless of pattern or arc.

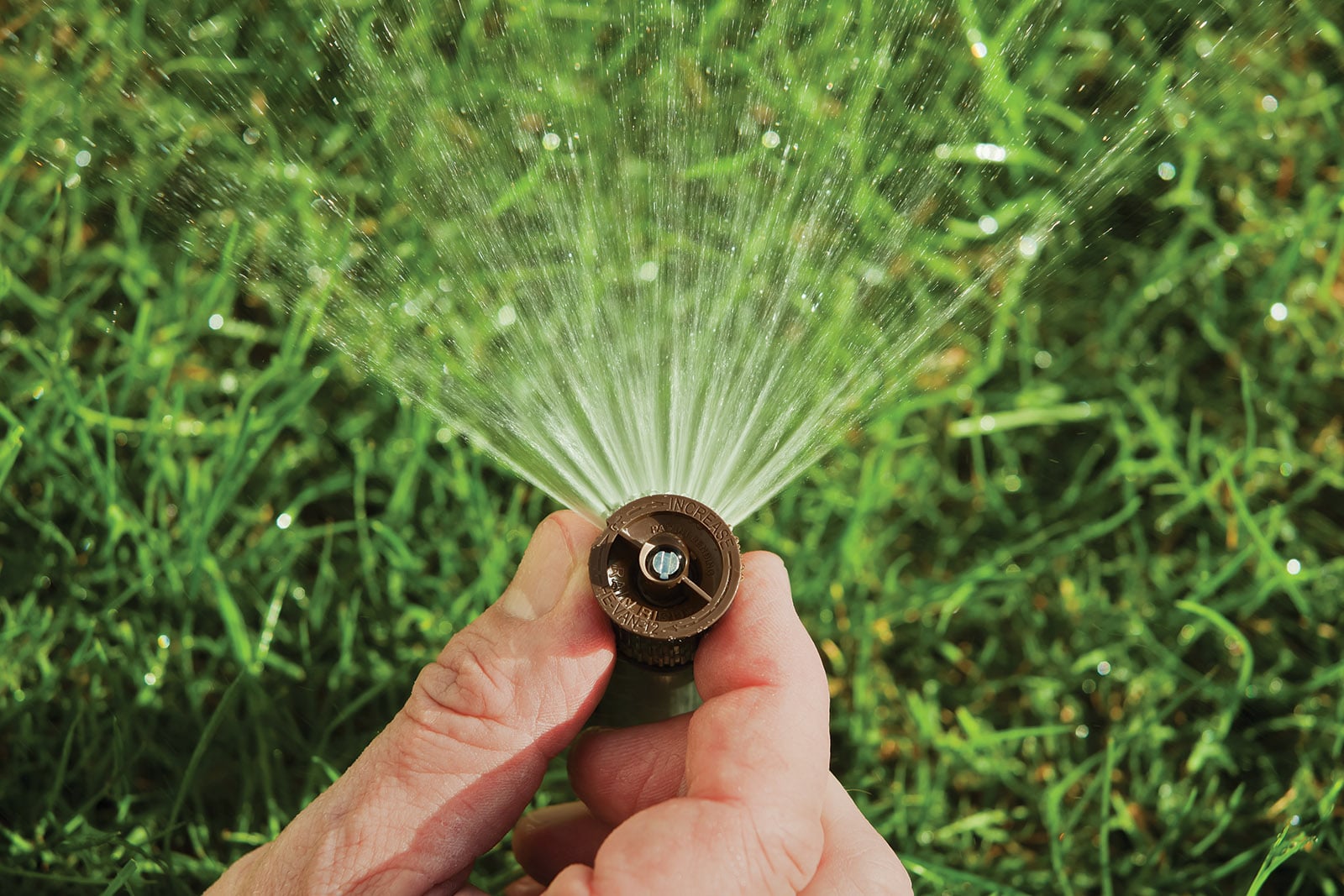

Rain Bird HE-VAN High-Efficiency Variable Arc Nozzles
The Rain Bird HE-VAN nozzles represent a breakthrough in precision irrigation technology. These aren't just replacements for standard nozzles, they are upgrades that transform how your system performs.
Benefits:
- Reduce water usage by up to 30% compared to standard spray nozzles.
- Provide superior water distribution, ensuring close-in and far-out areas receive balanced coverage.
- Adjust easily in the field without removing or replacing parts.
In short, nozzles are where efficiency meets precision. Choosing the right one, and pairing it with proper pressure and flow, ensures your entire system operates at peak performance.
Bringing It All Together: How Components Work as a System
Your sprinkler system works as a team: controllers signal valves, valves direct water through pipes, and rotors and spray heads deliver it to your plants, while the backflow preventer keeps your water supply safe.
Regular maintenance (checking clogs, adjusting spray, updating programs, replacing worn parts) ensures everything runs smoothly.
When to Call a Professional
While understanding your system helps with basic maintenance and smart decision-making, some situations call for professional expertise:
- Complex troubleshooting often requires specialized tools and knowledge. If multiple zones aren't working or your system has pressure or flow problems, professionals can diagnose issues quickly.
- System design and installation should always involve qualified professionals. They understand local codes, soil conditions, and plant water requirements that affect system performance.
- Upgrade recommendations benefit from professional assessment. Contractors can evaluate your current system's efficiency and suggest improvements that make the biggest impact on water savings and landscape health.
- Compliance with local codes requires professional knowledge of regulations that vary by location and change over time.
Ready to Transform Your Landscape?
Understanding your system empowers you to conserve water, save money, and keep your yard healthy. The next step is applying that knowledge with the right equipment and expert installation.
Rain Bird’s contractor referral service connects you with certified professionals in your area. These experts understand your local climate, water restrictions, and soil conditions, so you get the right solution, installed right the first time.
