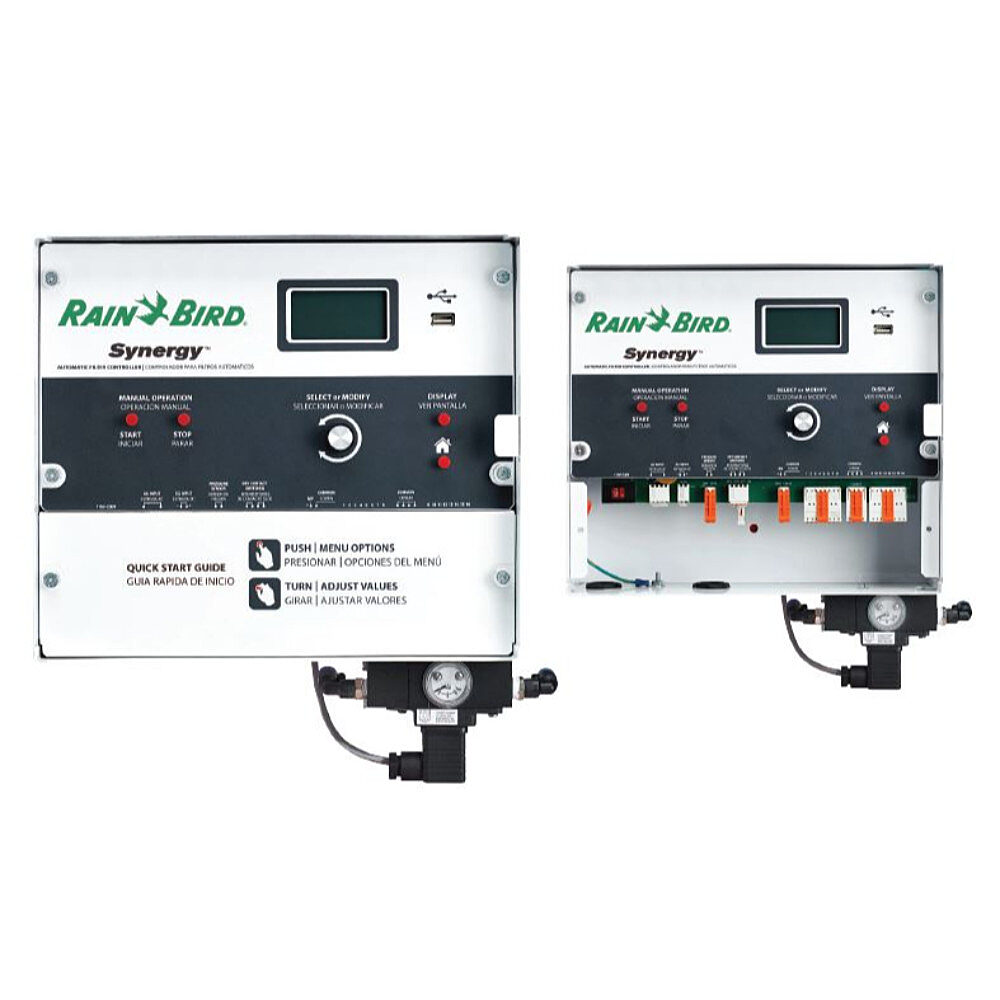

Synergy Automatic Controller

  • 16-station output
  • Operates up to 2 valves per station, plus a master valve
  • Selectable input power: 110V AC, 220V AC, or 12V DC
  • Backwash on time stamp, elapsed time, or pressure differential
  • Programmable filter-backwash frequency, duration and delay
  • Manual start with station advance and stop
  • Water- and bug-resistant enclosure
  • Pre-dwell 0-5 minutes
  • Alarms events displayed on digital screen display, including output terminals for light and/or siren
    • Continuous backwash
    • Short circuit of solenoid
    • High pressure with automatic pump shutdown
    • Faulty panel
    • Faulty pressure differential switch
  • 72-hour power backup in the event of a power outage
  • Digital display with selection of English or Spanish
    • Real-time hours and minutes
    • Number of backwash events
    • Number of backwash events within a time period
  • Wire loom block for quick and easy solenoid wire installation and removal
  • USB port for historical data logging
  • Made in the USA
