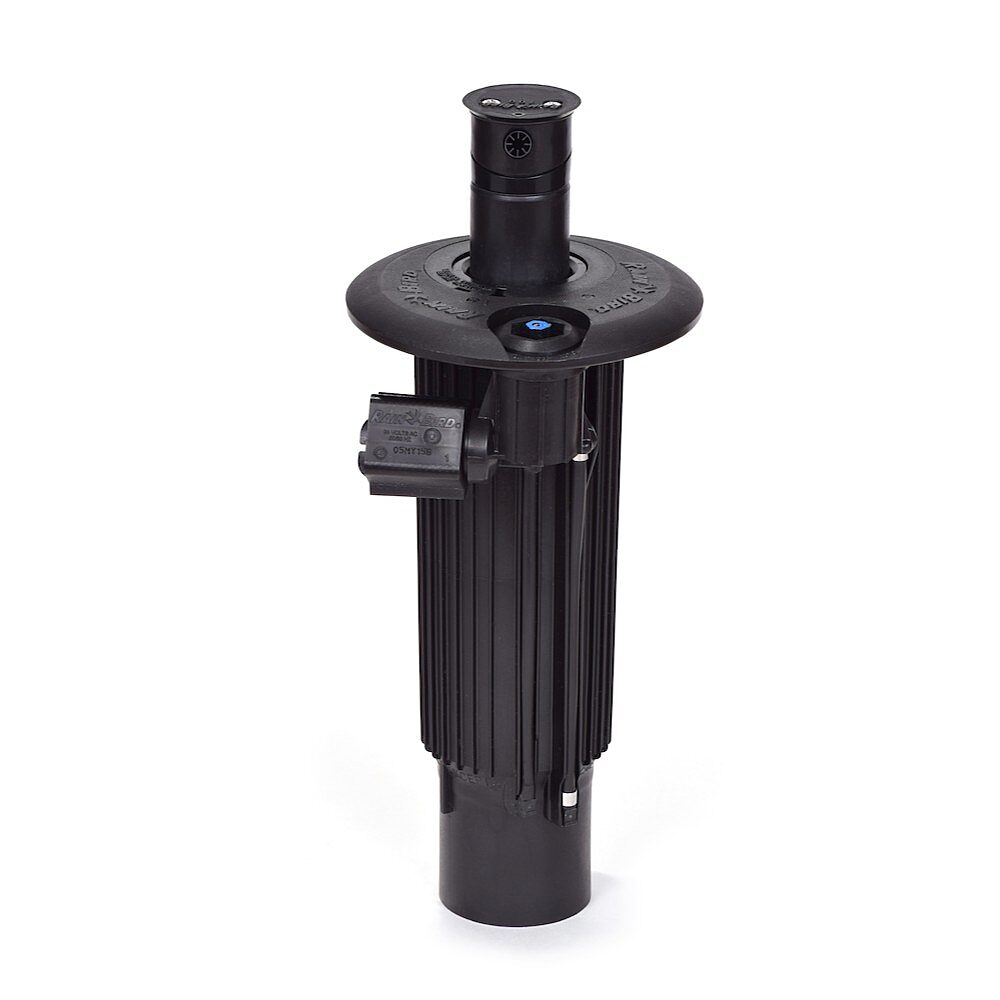

Rain Bird 700 Series

Full-Circle Golf Rotors

Featuring consistent pressure regulation and high-efficiency nozzles with large droplets that cut through harsh winds, Rain Bird® 700 Series
rotors give you the even distribution you need for a healthy playing surface. With the ability to drop a new Rain Bird 700 Series internal assembly into your existing rotor cases, they save you time and money year after year. Rain Bird golf rotors offer a low cost of ownership through a powerful combination of versatility, performance, and durability.

Features

Rain Bird® golf rotors are engineered for precise application and distribution uniformity, helping you get the most from your water source. With intelligent, easy-to-use features like a top‑serviceable design and quick full-circle/part-circle adjustments, Rain Bird golf rotors help you and your crew save time every week.

Timeless Compatibility

Timeless Compatibility™

Designed for Timeless Compatibility™ with every EAGLE® rotor manufactured since 1992, these rotors give you the flexibility to update internals without having to dig up the case, saving you even more time.

GBS25 Solenoid

Delivers 25kV surge protection and built‑in filtration for a second level of protection from debris. Eliminates the most common maintenance tasks that plague competing rotors.

Top Serviceability

With superior performance in a smaller footprint than competing rotors and an intelligent snap-ring design for quick access to serviceable components, Rain Bird rotors have long been the perfect choice for golf courses.

Specs

Radius

  • 57' to 79' (17.4 m to 24.1 m)

Flow Rate

  • 16.3 to 43.9 gpm (1.03 to 2.76 l/s) (3.70 to 9.95 m3/h)

Arc

  • Full-circle 360°

Maximum Inlet Pressure

  • Models E and IC: 150 psi (10.3 bars)
  • Models S/H and B: 100 psi (6.9 bars)

Pressure Regulation Range

  • 60 to 100 psi (4.1 to 6.9 bars)

Factory Pressure Settings

  • 700E/IC available in 70 and 80 psi (4.8 and 5.5 bars)

Dimensions

  • Body Height
    • Models E, IC, S/H: 12.0" (30.5 cm)
    • Models B: 9.6" (24.5 cm)
  • Pop-Up Height to Mid-Nozzle
    • Models E, IC, S/H, B: 2.6" (6.6 cm)
  • Top Diameter
    • Models E, IC, S/H: 6.25" (15.9 cm)
    • Models B: 4.25" (10.8 cm)

Nozzle Trajectory

  • Standard: 25°
  • Wind Tolerant: 12°
  • Low-Angle: 17°

Inlet Threads

  • Models E, IC, S/H: 1.25" (3.2 cm) ACME Female Threaded
  • Models B: 1" (2.5 cm) ACME Female Threaded

Holdback

  • Block: 10' (3.1 m) of elevation
  • SAM/Hydraulic: 15' (4.6 m) of elevation

Rotation Time

  • 360° in ≤ 180 seconds; 150 seconds nominally

Maximum Stream Height

  • Standard: 17' (5.2 m)
  • Wind Tolerant: 10' (3.1 m)

Solenoid

  • 24 VAC solenoid power requirement: 0.41 amp inrush current (9.8 VA)
    • 60 cycle: 0.25 amp holding current (6.0 VA)
    • 50 cycle: 0.32 amp holding current (7.7 VA)

Surge Resistance

  • up to 25KV standard on electric models with the GBS-25 solenoid

Top-Serviceable Rock Screen™ and Replaceable Valve Seat

  • On models 700E, IC, S/H and 751E, IC, S/H

Note: All data is generated from tests conducted in accordance with ASAE Standard S398.1 for at least 30 minutes in zero-wind conditions. Rain Bird recommends the use of SPACE for Windows,® equivalent program or derived performance data to optimize nozzle selection.

Model Comparison

E: Electric
IC: Integrated Control
S/H: Combined use Stopamatic (SAM) or Hydraulic (N.O.)*
B: Seal-A-Matic™ device
