8SA/12SA/22SA Simple Adjust Rotary Sprinklers - International

Adjustable 45°–270° Pattern, 2,4 m–7,3 m Spray Distance

These innovative rotary sprinklers set the industry standards for watering efficiency along with simple pattern adjustments and pull-to-flush by hand, with no tools required.

Their superior performance is further enhanced with Rain Bird's 1800 Series sprinkler bodies, the #1 selling pop-up sprinklers in the world. Paired with R-VAN rotary nozzles, this design combination is all-professional grade, utilizing a patented pressure-activated, co-molded wiper seal to provide unmatched resistance to grit, pressure and the environment.

Features

  • Heavy-duty stainless steel spring assures flush retraction every time
  • Tapered pop-up neck helps remove debris during retraction while a precision controlled flushing action also clears debris assuring positive stem retraction in all soil types
  • Two-piece ratchet mechanism allows easy nozzle pattern alignment without tools and provides extra durability
  • All sprinkler components are removable from the top without special tools; providing for quick and easy flushing and maintenance
  • Multiple rotating streams resist wind-blown overspray waste
  • 45° to 270° variable pattern, easily adjusted by hand without tools
  • Slow distribution rate of 0.6 inches per hour is perfect for newly seeded areas and slopes
  • Perfect pairing of rotary nozzle versatility and Rain Bird's 1800 Series bodies, the #1 selling sprinkler in the world

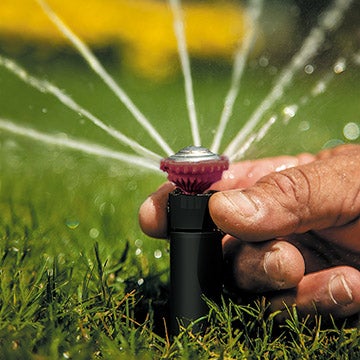

45°-270° Adjustable Nozzles

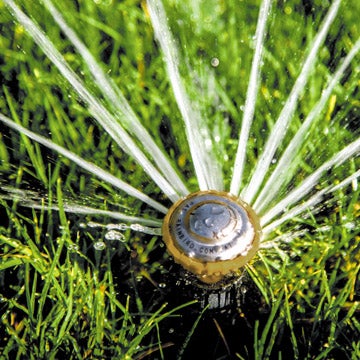

Variable arc rotary sprinkler
Variable arc rotary sprinklers combine watering efficiency with the simplicity of 45°– 270° pattern adjustment by hand, with no tools required.

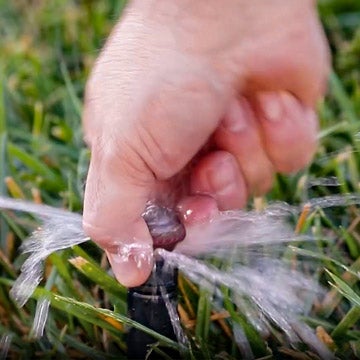

Simply pull up to flush the nozzle
Simply pull up to flush the nozzle, helping to maintain clear flow and uniform watering coverage.
Pressure regulated stems
Pressure regulated stems produce a constant 45 psi pressure for optimum nozzle performance. Eliminates wasteful misting and overspray.



Specs

  • Pop-up height: 10,2 cm (4")
  • Maximum spray distance: 7,3 m (24 ft.)
  • Inlet size: 13 mm (1/2") NPT female threaded bottom
  • Pressure range: 2,1 to 3,8 bar (30 to 55 psi)
  • Adjustable nozzle arc range: 45°–360°

Model Comparison

Models with High-Efficiency Nozzles Pre-Attached

  • 8SAPRO: 10,2 cm (4") pop-up height with adjustable 2,4-4,6 m (8-14 ft.) R-VAN attached
  • 12SAPRO: 10,2 cm (4") pop-up height with adjustable 4-5,5 m (13-18 ft.) R-VAN attached
  • 22SAPRO: 10,2 cm (4") pop-up height with adjustable 5,8-7,3 m (17-24 ft.) R-VAN attached
