Micro Bird® Jet

Flow rate: 3.7 to 30.6 gph (13.8 to 115.7 l/h)

Use water, chemicals, and energy more efficiently with Micro Bird® Jet. Its rugged construction matched with the flexibility of different spray patterns makes Micro Bird® the smart choice for dependable irrigation. Featuring our signature Snap-Fit Assembly and exclusive reversible deflectors, this system is easy to maintain and built to grow with your operation—no tools necessary.



Features

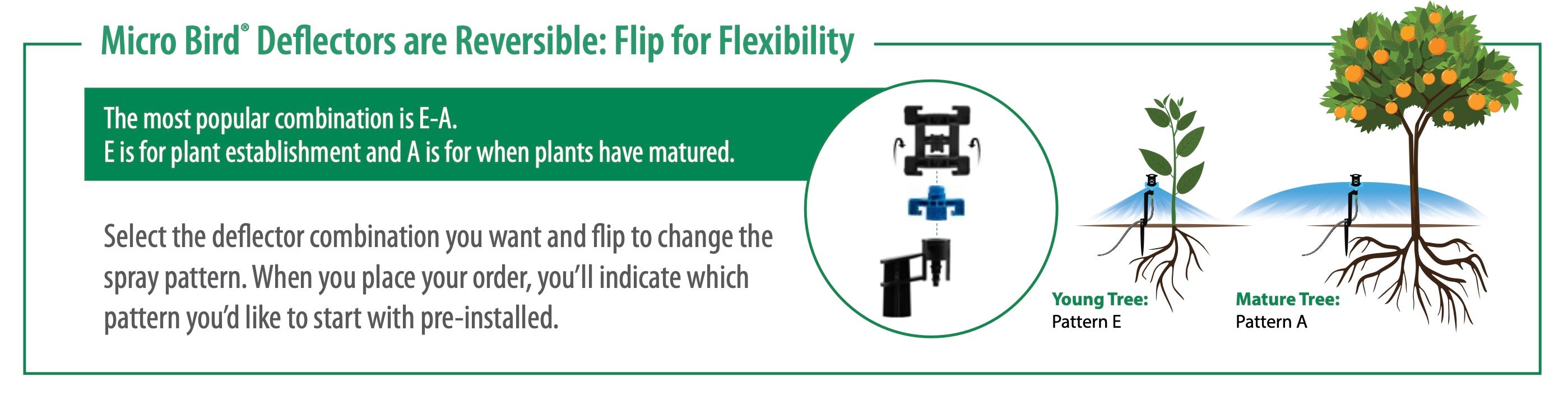

  • Reversible, dual-pattern deflector can be flipped to adjust wetted area dependent on crop maturation.

  • Snap-fit nozzles and deflectors for convenient assembly, disassembly, and cleaning without tools.

  • Large, color-coded parts make installation and maintenance easy.

  • Ultraviolet (UV) stabilized resin resists damage from sun and chemicals.

  • Large stakes provide optimal stability and height.

  • Order pre assembled from the factory or as individual components for field customization.

Micro Bird® Deflectors



Specs

Operating Pressure

  • 10 to 30 psi (0.7 to 2.1 bar)

Flow Range

  • 5 to 30 gph (13.8 to 114  l/h)

Wetted Diameter Range

  • 3 to 21.5 feet (0.9 to 6.5m)

Filtration

  • Recommendation varies by nozzle selection
  • Ranges from 80 to 200 mesh (74 to 180 micron)

Distribution/Transfer Tubing

  • Standard length in assembly: 36” (0.91 m), call for custom length options 1-800-HELLO-AG
  • Tubing Size: OD: 0.25” (6.4 mm), ID: 0.17”  (4.3 mm), wall thickness: 0.04” (1mm)
